Carburetor membrane for Mercury and Yamaha 2 and 4-stroke engines: 8K, 15K, 20C, 25C, 30A, 40, 55, 60 and 70 hp series. It regulates the pressure and flow of fuel to the carburetor through a pressure-vacuum system that maintains the air-petrol mixture in optimal navigation conditions.
14 Days Return
Simple and fast returns management so you can shop with complete confidence.
Free shipping
On orders over €99
Technical Advice
Unsure about the replacement part? Contact us via WhatsApp and we'll verify the exact part for you.
100% Secure Payment
Transactions are protected with SSL and HTTPS encryption. Shop with complete peace of mind.

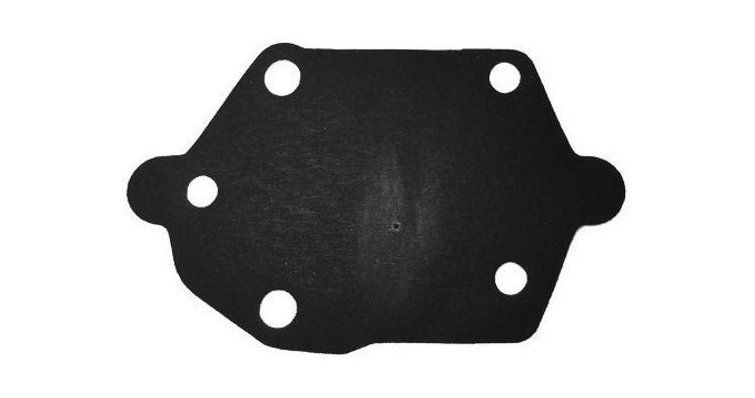

MEMBRANE 80606M
REC648-24411-00
€14.31
Tax included
Carburetor membrane for Mercury and Yamaha 2 and 4-stroke engines: 8K, 15K, 20C, 25C, 30A, 40, 55, 60 and 70 hp series. It regulates the pressure and flow of fuel to the carburetor through a pressure-vacuum system that maintains the air-petrol mixture in optimal navigation conditions.
Description
Function and technical context
The 80606M membrane is the regulating component of the fuel supply system on Mercury, Mariner and Mercruiser outboard engines. It operates through a pressure-vacuum mechanism that controls the flow of petrol from the tank to the carburetor, maintaining a constant pressure regardless of navigation conditions. This membrane is essential to guarantee a precise air-fuel mixture: its failure causes over-enrichment or impoverishment of the mixture, loss of power, difficult starts and, in extreme cases, complete stoppage of the engine during navigation.
When to replace this part?
Carburetor membranes show clear signs of aging: loss of elasticity, microscopic cracks, discoloration and fragility to the touch. They usually require replacement after 5-8 seasons of intense use or when fuel supply failures are detected without apparent cause in other components. It is recommended to visually inspect the membrane every year and replace it preventively together with the fuel filter during spring maintenance; This action prevents emergency repairs at sea and significantly extends the life of the carburetor.
Engine Compatibility
Mercury/MerCruiser
| Marca | Modelo | Rango de serie |
|---|---|---|
| Mercury Mariner | 8 K | 680K-300302 & Up / 680-001986 & Up / 680-348706 & Up |
| Mercury Mariner | 15 K | 65G-602581 & Up / 6M7K-100382 & Up / 65G-200197 & Up |
| Mercury Mariner | 20C (THRU PROP. EXHAUST) | 6A9-250820 & Up / 6A9-306543 & Up / 6A9-550694 & Up / 6A9-010112 & Up |
| Mercury Mariner | 25C (THRU PROP. EXHAUST) | 695-250101 THRU 253861 / 695-300101 THRU 318173 / 695-550101 THRU 555959 / 695-000101 THRU 023895 |
| Mercury Mariner | 30A | 689-105325 THRU 689-530100 (ML) / 689-411947 THRU 689-550100 (EL) / 689-022059 THRU 689-230100 (M) / 689-321377 THRU 689-250100 (E) / 689-000366 THRU 022058 / 689-100251 THRU 105324 / 689-301911 THRU 321376 / 689-401216 THRU 411946 |
| Mercury Mariner | 40 (TWIN CARB) (W/OIL INJECTION) | 6E9-150001 & Up / 6E9-350001 & Up / 6E9-450001 & Up / 6E9-015001 & Up |
| Mercury Mariner | 40B (THRU PROP. EXHAUST) | M-676-B000106 THRU B002780 / E-676-B100461 THRU B102785 / ML-676-B300101 THRU B302425 / EL-676-B400420 THRU B405250 |
| Mercury Mariner | 40C (TWIN CARB) | 6E9-000106 THRU 6E9-007665 (M) / 6E9-100101 THRU 6E9-105013 (E) / 6E9-300126 THRU 6E9-309343 (ML) / 6E9-400231 THRU 6E9-423162 (EL) |
| Mercury Mariner | 40C (TWIN CARB) (W/AUTO-BLEND) | 6E9-105014 THRU 6E9-150000 (E) / 6E9-309344 THRU 350000 (ML) / 6E9-500101 & Up / 6E9-007666 THRU 6E9-015000 (M) / 6E9-423163 THRU 450000 (EL) |
| Mercury Mariner | K 40 H.P. | 6F5-301827 & Up / 6F5K-302372 & Up / 6F5-000711 & Up |
| Mercury Mariner | W40 (W/MARATHON) | 6F6-308308 & Up / 6F6-005206 & Up |
| Mercury Mariner | 60 (2 CYL.) | E-675-00101 THRU E-675-001170 / EL-675-30101 THRU EL-675-304180 |
Motores Yamaha Compatibles▾
| Modelo | Años |
|---|---|
| 115B | 1992 |
| 20C | 1985 – 1996 |
| 25B | 1994 |
| 25D | 1985 – 1992 |
| 25Q | 1990 – 1994 |
| 30A | 1985 – 1992 |
| 40E | 1986 |
| 40G | 1993 |
| 40G Enduro, Kerosene | 2019 |
| 40H | 1985 – 1994 |
| 40N | 1984 |
| 40Q | 1990 |
| 50D | 1985 – 1994 |
| 50E | 1984 |
| 50G | 1993 – 1994 |
| 55B | 1990 – 1993 |
| 60F | 1984 – 1994 |
| 70B | 1985 – 1994 |
| 70C | 1990 |
| 70E | 1984 |
| 90A | 1984 – 1994 |
| 90T | 1993 |
| EK15D | 2019 |
| EK15D Enduro, Kerosene | 2018 |
| EK15N Kerosene | 2003 |
| EK40G Enduro, Kerosene | 2018 |
| WR650 | 1989 |
Equivalent manufacturer part numbers
| Manufacturer/Brand | Reference/Part Number |
|---|---|
| Mercury Mariner | 00, 80606M |
| Yamaha | 648-24411-00, 648-24411-00-00, 6482441100, 648244110000 |
Product Details
REC648-24411-00
Specific References
