Turbine impeller for engine cooling water pump. Maintains water circulation in cooling systems for Johnson, Evinrude and Mercury outboards. Compatible with 147 engine models in 2 and 4-stroke configurations.
14 Days Return
Simple and fast returns management so you can shop with complete confidence.
Free shipping
On orders over €99
Technical Advice
Unsure about the replacement part? Contact us via WhatsApp and we'll verify the exact part for you.
100% Secure Payment
Transactions are protected with SSL and HTTPS encryption. Shop with complete peace of mind.

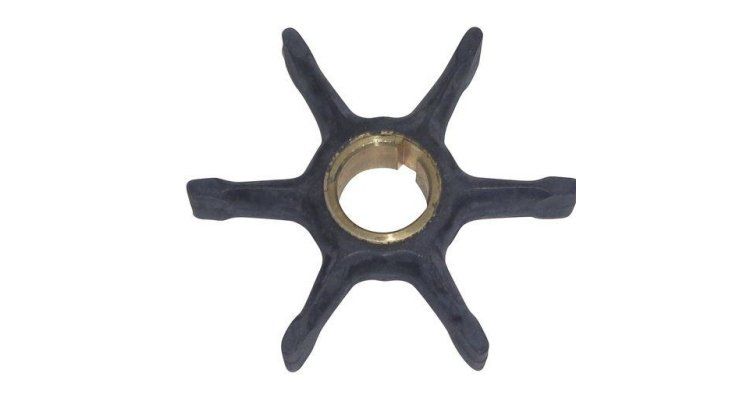

Impeller 775518
REC775518
€13.98
Tax included
Turbine impeller for engine cooling water pump. Maintains water circulation in cooling systems for Johnson, Evinrude and Mercury outboards. Compatible with 147 engine models in 2 and 4-stroke configurations.
Description
Function and Technical Context
The water pump impeller is the central rotating component of the seawater cooling system in outboard and stationary engines. Manufactured from flexible rubber, its vanes bend and recover with each rotation to displace water from the through-hull intake to the cooling circuit of the block and cylinder head. Without a properly functioning impeller, coolant flow is drastically reduced, causing overheating, loss of power and, in severe cases, cylinder head warping or engine seizure. This impeller, referenced as 775518 / REC775518, is compatible with Mercury, MerCruiser and OMC (Johnson/Evinrude) equipment, covering a wide range of marine applications.
When to Replace This Part?
The most common symptoms of a worn impeller are reduced or absent cooling water discharge from the telltale fitting, temperature warning light activation or visible loss of engine performance under load. The rubber vanes harden, crack or break with use and heat exposure, especially after periods of dry storage. It is recommended to replace the impeller every 200-300 hours of operation or every two seasons as preventive maintenance; replacing it ashore is simple and economical compared to an overheating failure at sea.
Compatible Johnson/Evinrude Engines
| Series | Models |
|---|---|
| Otros | 18002C 1970, 18002E 1970, 18003C 1970, 18003E 1970, 18102S 1971, 18103S 1971, 18202R 1972, 18203R 1972, 18304A 1973, 18305A 1973, 18802A 1968, 18802E 1968, 18802M 1968, 18803A 1968, 18803E 1968, 18803M 1968, 18902B 1969, 18902D 1969, 18903B 1969, 18903D 1969, 20R69B 1969, 20R69D 1969, 20R70C 1970, 20R70E 1970, 20R71S 1971, 20R72R 1972, 20R73A 1973, 20RL69B 1969, 20RL69D 1969, 20RL70C 1970, 20RL70E 1970, 20RL71S 1971, 20RL72R 1972, 20RL73A 1973, 25002C 1970, 25002E 1970, 25003C 1970, 25003E 1970, 25102S 1971, 25103S 1971, 25202R 1972, 25203R 1972, 25252R 1972, 25253R 1972, 25302A 1973, 25303A 1973, 25352A 1973, 25353A 1973, 25402M 1974, 25403M 1974, 25452M 1974, 25453M 1974, 25502B 1975, 25503B 1975, 25552B 1975, 25553B 1975, 25602E 1976, 25603E 1976, 25652E 1976, 25653E 1976, 25702H 1977, 25702S 1977, 25703H 1977, 25703S 1977, 25752H 1977, 25752S 1977, 25753H 1977, 25753S 1977, 25802C 1978, 25803C 1978, 25852C 1978, 25853C 1978, 25902B 1969, 25902D 1969, 25903B 1969, 25903D 1969, 25E72R 1972, 25E73A 1973, 25E74M 1974, 25E75B 1975, 25E76E 1976, 25E77S 1977, 25E78C 1978, 25EL72R 1972, 25EL73A 1973, 25EL74M 1974, 25EL75B 1975, 25EL76E 1976, 25EL77H 1977, 25EL77S 1977, 25EL78C 1978, 25R69B 1969, 25R69D 1969, 25R70C 1970, 25R70E 1970, 25R71S 1971, 25R72R 1972, 25R73A 1973, 25R74M 1974, 25R75B 1975, 25R76E 1976, 25R77H 1977, 25R77S 1977, 25R78C 1978, 25RL69B 1969, 25RL69D 1969, 25RL70C 1970, 25RL70E 1970, 25RL71S 1971, 25RL72R 1972, 25RL73A 1973, 25RL74M 1974, 25RL75B 1975, 25RL76E 1976, 25RL77H 1977, 25RL77S 1977, 25RL78C 1978, 35702C 1977, 35702H 1977, 35703C 1977, 35703H 1977, 35752C 1977, 35752H 1977, 35753C 1977, 35753H 1977, 35802R 1978, 35803R 1978, 35852R 1978, 35853R 1978, 35E77C 1977, 35E77H 1977, 35E78R 1978, 35EL77C 1977, 35EL77H 1977, 35EL78R 1978, 35R77C 1977, 35R77H 1977, 35R78R 1978, 35RL77C 1977, 35RL77H 1977, 35RL78R 1978, FD-22A 1968, FD-22E 1968, FD-22M 1968, FDL-22A 1968, FDL-22E 1968, FDL-22M 1968 |
Equivalent Manufacturer References
| Manufacturer/Brand | Reference/Part Number |
|---|---|
| Mercury/Mariner/Mercruiser | 802315 |
| OMC | 0775518, 375638, 775518 |
Related Johnson/Evinrude Spare Parts
If you are maintaining or repairing your Johnson/Evinrude engine, these spare parts might also interest you:
- Aro Torico 25-30224Category: J/E Lower Drive 40-50 HP (1989-05)
- Junta Tapon Aceite 12-191833Category: J/E Lower Drive 40-75 HP (1975-06)
- Pasador 3852056Category: J/E Lower Drive V4/V6 Ratio O (1979-06)
- Termostato 814554T01 6F5-12411-03Category: Thermostats and Gaskets Johnson Evinrude
- Junta Culata 335359Category: 2-stroke Cylinder Head Gaskets Johnson Evinrude
Product Details
REC775518
