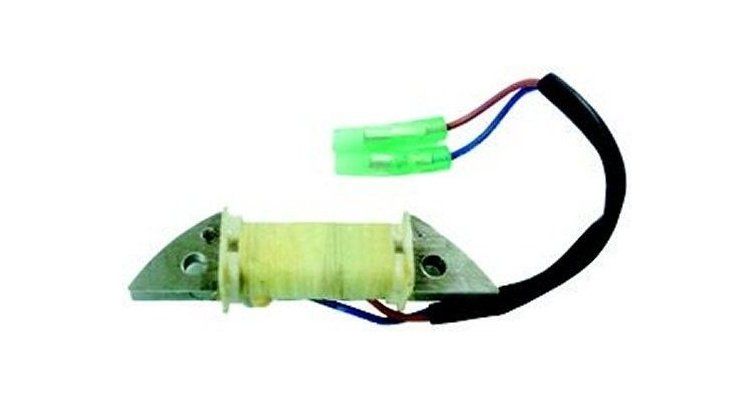

YAMAHA CHARGING COIL 63V-85520-00

Function and technical context

The 63V-85520-00 charging coil is the component responsible for generating the electrical current necessary to power the ignition system and the electrical circuits of the outboard motor. Integrated into the magnetic flywheel, it works within the electrical generation system to transform mechanical rotation energy into electrical energy. Its correct operation is essential to maintain battery charge, ensure reliable engine starting and ensure that all electrical systems operate at adequate voltage during navigation.

When to replace this part?

Typical symptoms of charging coil failure include difficulty starting the engine, progressive dimming of lights or failures in electrical instruments, and abnormal battery discharge even with the engine running. It is recommended to check the condition of the coil during each seasonal maintenance check, especially after a winter or long period of non-use. Replacing the coil preventively when the first symptoms appear avoids being left without starting capacity in the middle of sailing and prevents secondary damage to other electrical equipment on the engine.

Equivalent manufacturer part numbers
