Seal 321481

REC321481
€14.56
Tax included

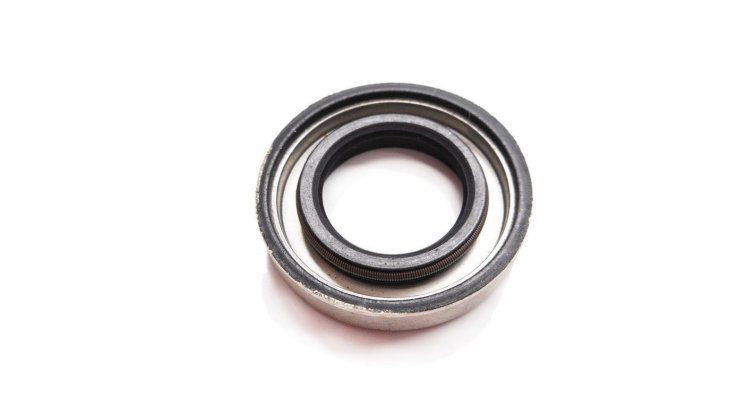

Precision waterproof seal for lubrication and transmission systems in OMC outboard engines. Prevents oil leaks and water ingress in propulsion shafts. Compatible with Johnson E10, E15, E40, J10, J15, J40 and turbo and tandem variants from 87 to 105 different models.
Quantity
Formas de pago: tarjeta, Bizum, PayPal, transferencia bancaria y contrareembolso

Order it before 3 hours y 5 minutes and receive it between tomorrow and Thursday 30 July with Correos Express

Description

Function and Technical Context

The seal 321481 acts as a dynamic sealing element in rotating motion zones of the OMC outboard motor, forming a hermetic barrier that prevents the leakage of oil or lubricating grease to the exterior and simultaneously blocks the entry of water and contaminant particles into the assembly. This type of component operates in the lubrication or transmission system, housed at critical points such as the propeller shaft, crankshaft, or camshaft, where pressure and friction are constant throughout the entire operational life of the motor. When the rubber lip of the seal loses elasticity or cracks, the seal integrity becomes compromised: the lubricant gradually depletes, friction between metal components increases, and internal corrosion from seawater infiltration can irreversibly damage high-cost components with difficult access. Timely replacement of this seal is, therefore, one of the most cost-effective preventive interventions in the maintenance of Johnson and Evinrude motors, in both fresh water and saltwater environments.

When Should This Part Be Replaced?

The clearest signs that the seal has failed or is about to fail are the appearance of oil or grease stains around the shaft, moisture or water in the crankcase with no apparent external cause, gradual loss of lubricant level, and in some cases, a dry friction noise in the shaft area during operation. It is recommended to visually inspect the condition of the seal at each seasonal maintenance and replace it preventively whenever the assembly is disassembled for another service, since the rubber deteriorates due to heat effects and continuous work cycles even before showing obvious symptoms. Taking advantage of any opening of the assembly to renew the seal avoids emergency repairs afloat and protects adjacent components from costly premature wear.

Compatible Johnson/Evinrude Motors

SeriesModels
E10E10ECCD 1988, E10ECDB 1986, E10ECES 1989, E10ECOM 1985, E10ECSE 1980, E10ECUE 1987, E10EEIR 1991, E10EENA 1992, E10EEOE 1995, E10EERB 1994, E10EESC 1990, E10EETM 1993, E10ELCCD 1988, E10ELCDB 1986, E10ELCES 1989, E10ELCID 1981, E10ELCNS 1982, E10ELCOM 1985, E10ELCRA 1984, E10ELCSE 1980, E10ELCTC 1983, E10ELCUE 1987, E10ELEIR 1991, E10ELENA 1992, E10ELEOE 1995, E10ELERB 1994, E10ELESC 1990, E10ELETM 1993, E10FEXEO 1995, E10FRELEOC 1995, E10FREOC 1995, E10FRLEO 1995, E10RCCD 1988, E10RCDB 1986, E10RCES 1989, E10RCID 1981, E10RCNS 1982, E10RCOM 1985, E10RCRA 1984, E10RCSE 1980, E10RCTC 1983, E10RCTR 1983, E10RCUE 1987, E10REIR 1991, E10RELEIR 1991, E10RELENA 1992, E10RELEOE 1995, E10RELERB 1994, E10RELESC 1990, E10RELETM 1993, E10RENA 1992, E10REOE 1995, E10RERB 1994, E10RESC 1990, E10RETM 1993, E10RLCCD 1988, E10RLCDB 1986, E10RLCES 1989, E10RLCID 1981, E10RLCNS 1982, E10RLCOM 1985, E10RLCRA 1984, E10RLCSE 1980, E10RLCTC 1983, E10RLCUE 1987, E10RLEIR 1991, E10RLENA 1992, E10RLEOE 1995, E10RLERB 1994, E10RLESC 1990, E10RLETM 1993, E10SELCCD 1988, E10SELCDB 1986, E10SELCES 1989, E10SELCID 1981, E10SELCNS 1982, E10SELCOM 1985, E10SELCRA 1984, E10SELCSE 1980, E10SELCTC 1983, E10SELCUE 1987, E10SELEIR 1991, E10SELENA 1992, E10SELEOE 1995, E10SELERB 1994, E10SELESC 1990, E10SELETM 1993
E15E15DLEOC 1995, E15ECCS 1988, E15ECDE 1986, E15ECEC 1989, E15ECIS 1981, E15ECNC 1982, E15ECOB 1985, E15ECRM 1984, E15ECSD 1980, E15ECTR 1983, E15ECUD 1987, E15EEIA 1991, E15EENM 1992, E15EEOD 1995, E15EERE 1994, E15EESR 1990, E15EETB 1993, E15ELCCS 1988, E15ELCDE 1986, E15ELCEC 1989, E15ELCOB 1985, E15ELCRM 1984, E15ELCSD 1980, E15ELCTR 1983, E15ELCUD 1987, E15ELEIA 1991, E15ELENM 1992, E15ELEOD 1995, E15ELERE 1994, E15ELESR 1990, E15ELETB 1993, E15FREOC 1995, E15FRLEOC 1995, E15KEOC 1995, E15RCCS 1988, E15RCDE 1986, E15RCEC 1989, E15RCIS 1981, E15RCNC 1982, E15RCOB 1985, E15RCRM 1984, E15RCSD 1980, E15RCTA 1983, E15RCTR 1983, E15RCUD 1987, E15REIA 1991, E15RELEIA 1991, E15RELENM 1992, E15RELEOD 1995, E15RELERE 1994, E15RELESR 1990, E15RELETB 1993, E15RENM 1992, E15REOD 1995, E15RERE 1994, E15RESR 1990, E15RETB 1993, E15RLCCS 1988, E15RLCDE 1986, E15RLCEC 1989, E15RLCIS 1981, E15RLCNC 1982, E15RLCOB 1985, E15RLCRM 1984, E15RLCSD 1980, E15RLCTA 1983, E15RLCTR 1983, E15RLCUD 1987, E15RLEIA 1991, E15RLENM 1992, E15RLEOD 1995, E15RLERE 1994, E15RLESR 1990, E15RLETB 1993
E40E40RSLR 1983, E40RSR 1983, E40RWCDB 1986, E40RWCOM 1985, E40RWCRA 1984, E40RWLCDB 1986, E40RWLCOM 1985, E40RWLCRA 1984, E40RWLCTR 1983, E40RWLTR 1983
J10J10ECCD 1988, J10ECDB 1986, J10ECES 1989, J10ECOM 1985, J10ECSE 1980, J10ECUE 1987, J10EEIR 1991, J10EENA 1992, J10EEOE 1995, J10EERB 1994, J10EESC 1990, J10EETM 1993, J10ELCCD 1988, J10ELCDB 1986, J10ELCES 1989, J10ELCID 1981, J10ELCNS 1982, J10ELCOM 1985, J10ELCRA 1984, J10ELCSE 1980, J10ELCTC 1983, J10ELCUE 1987, J10ELEIR 1991, J10ELENA 1992, J10ELEOE 1995, J10ELERB 1994, J10ELESC 1990, J10ELETM 1993, J10FEXEO 1995, J10FRELEOC 1995, J10FREOC 1995, J10FRLEO 1995, J10RCCD 1988, J10RCDB 1986, J10RCES 1989, J10RCID 1981, J10RCNS 1982, J10RCOM 1985, J10RCRA 1984, J10RCSE 1980, J10RCTC 1983, J10RCTR 1983, J10RCUE 1987, J10REIR 1991, J10RELEIR 1991, J10RELENA 1992, J10RELEOE 1995, J10RELERB 1994, J10RELESC 1990, J10RELETM 1993, J10RENA 1992, J10REOE 1995, J10RERB 1994, J10RESC 1990, J10RETM 1993, J10RLCCD 1988, J10RLCDB 1986, J10RLCES 1989, J10RLCID 1981, J10RLCNS 1982, J10RLCOM 1985, J10RLCRA 1984, J10RLCSE 1980, J10RLCTC 1983, J10RLCTR 1983, J10RLCUE 1987, J10RLEIR 1991, J10RLENA 1992, J10RLEOE 1995, J10RLERB 1994, J10RLESC 1990, J10RLETM 1993, J10SELCCD 1988, J10SELCDB 1986, J10SELCES 1989, J10SELCID 1981, J10SELCNS 1982, J10SELCOM 1985, J10SELCRA 1984, J10SELCSE 1980, J10SELCTC 1983, J10SELCUE 1987, J10SELEIR 1991, J10SELENA 1992, J10SELEOE 1995, J10SELERB 1994, J10SELESC 1990, J10SELETM 1993
J15J15DLEOC 1995, J15ECCS 1988, J15ECDE 1986, J15ECEC 1989, J15ECIS 1981, J15ECNC 1982, J15ECOB 1985, J15ECRM 1984, J15ECSD 1980, J15ECTR 1983, J15ECUD 1987, J15EEIA 1991, J15EENM 1992, J15EEOD 1995, J15EERE 1994, J15EESR 1990, J15EETB 1993, J15ELCCS 1988, J15ELCDE 1986, J15ELCEC 1989, J15ELCOB 1985, J15ELCRM 1984, J15ELCSD 1980, J15ELCTR 1983, J15ELCUD 1987, J15ELEIA 1991, J15ELENM 1992, J15ELEOD 1995, J15ELERE 1994, J15ELESR 1990, J15ELETB 1993, J15FREOC 1995, J15FRLEOC 1995, J15KEOC 1995, J15RCCS 1988, J15RCDE 1986, J15RCEC 1989, J15RCIS 1981, J15RCNC 1982, J15RCOB 1985, J15RCRM 1984, J15RCSD 1980, J15RCTA 1983, J15RCTR 1983, J15RCUD 1987, J15REIA 1991, J15RELEIA 1991, J15RELENM 1992, J15RELEOD 1995, J15RELERE 1994, J15RELESR 1990, J15RELETB 1993, J15RENM 1992, J15REOD 1995, J15RERE 1994, J15RESR 1990, J15RETB 1993, J15RLCCS 1988, J15RLCDE 1986, J15RLCEC 1989, J15RLCIS 1981, J15RLCNC 1982, J15RLCOB 1985, J15RLCRM 1984, J15RLCSD 1980, J15RLCTA 1983, J15RLCTR 1983, J15RLCUD 1987, J15RLEIA 1991, J15RLENM 1992, J15RLEOD 1995, J15RLERE 1994, J15RLESR 1990, J15RLETB 1993
J40J40RSLR 1983, J40RSR 1983, J40RWCDB 1986, J40RWCOM 1985, J40RWCRA 1984, J40RWCTR 1983, J40RWLCDB 1986, J40RWLCOM 1985, J40RWLCRA 1984, J40RWLCTR 1983
Otros10624G 1976, 10624H 1976, 10624R 1976, 10625G 1976, 10625H 1976, 10625R 1976, 10654G 1976, 10654H 1976, 10654R 1976, 10655G 1976, 10655H 1976, 10655R 1976, 10724A 1977, 10725A 1977, 10754A 1977, 10755A 1977, 10824M 1978, 10825M 1978, 10835M 1978, 10854M 1978, 10855M 1978, 10924B 1979, 10925B 1979, 10935B 1979, 10955B 1979, 10E76G 1976, 10E76H 1976, 10E76R 1976, 10E77A 1977, 10E78M 1978, 10EL76G 1976, 10EL76H 1976, 10EL76R 1976, 10EL77A 1977, 10EL78M 1978, 10EL79B 1979, 10R76G 1976, 10R76H 1976, 10R76R 1976, 10R77A 1977, 10R78M 1978, 10R79B 1979, 10RL76G 1976, 10RL76H 1976, 10RL76R 1976, 10RL77A 1977, 10RL78M 1978, 10RL79B 1979, 10SEL78M 1978, 10SEL79B 1979, 15604A 1976, 15604R 1976, 15605A 1976, 15605R 1976, 15654A 1976, 15654R 1976, 15655A 1976, 15655R 1976, 15704M 1977, 15705M 1977, 15754M 1977, 15804B 1978, 15805B 1978, 15854B 1978, 15855B 1978, 15904E 1979, 15905E 1979, 15954E 1979, 15955E 1979, 15E76A 1976, 15E76R 1976, 15E77M 1977, 15E78B 1978, 15E79E 1979, 15EL76A 1976, 15EL76R 1976, 15EL77M 1977, 15EL78B 1978, 15EL79E 1979, 15R76A 1976, 15R76R 1976, 15R77M 1977, 15R78B 1978, 15R79E 1979, 15RL76A 1976, 15RL76R 1976, 15RL77M 1977, 15RL78B 1978, 15RL79E 1979, 40604A 1976, 40604R 1976, 40605A 1976, 40605R 1976, 40654A 1976, 40654R 1976, 40655A 1976, 40655R 1976, 40E76A 1976, 40E76R 1976, 40EL76A 1976, 40EL76R 1976, 40R76A 1976, 40R76R 1976, 40RL76A 1976, 40RL76R 1976
TE10TE10ELCES 1989, TE10ELESC 1990, TE10RELEIR 1991, TE10RELENA 1992, TE10RELESC 1990, TE10RELETM 1993, TE10RLCES 1989, TE10RLESC 1990
TE15TE15RLCEC 1989
TJ10TJ10ELCES 1989, TJ10ELESC 1990, TJ10RELEIR 1991, TJ10RELENA 1992, TJ10RELESC 1990, TJ10RELETM 1993, TJ10RLCES 1989, TJ10RLESC 1990
TJ15TJ15RLCEC 1989



Equivalent Manufacturer References

Manufacturer/BrandReference/Part Number
OMC321481
