Water pump body for cooling systems of Johnson and Evinrude marine engines. Compatible with E35, E40, E45, E48, E50, E55, E60, J35, J40, J45, J48, J50, J55, J60, M55, R45, R55, S45 and VE48 series, covering over 292 model variants.
14 Days Return
Simple and fast returns management so you can shop with complete confidence.
Free shipping
On orders over €99
Technical Advice
Unsure about the replacement part? Contact us via WhatsApp and we'll verify the exact part for you.
100% Secure Payment
Transactions are protected with SSL and HTTPS encryption. Shop with complete peace of mind.

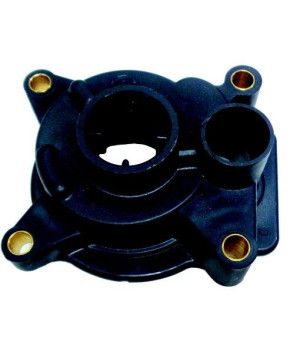

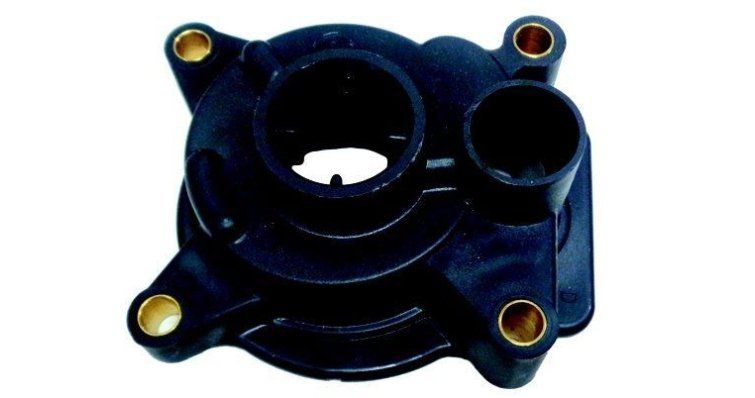

Water Pump Body 384087
REC384087
€17.97
Tax included
Water pump body for cooling systems of Johnson and Evinrude marine engines. Compatible with E35, E40, E45, E48, E50, E55, E60, J35, J40, J45, J48, J50, J55, J60, M55, R45, R55, S45 and VE48 series, covering over 292 model variants.
Description
Function and Technical Context
The water pump body is the primary structural component of the water cooling system in OMC outboard engines, being the housing that accommodates the impeller and channels seawater flow to the engine block to maintain operating temperature within safe ranges. Its integrity is critical to ensure coolant flow is constant and sufficient: any crack, internal erosion or deformation of the body causes a pressure drop in the hydraulic circuit that compromises the effectiveness of the entire cooling system. In Johnson and Evinrude engines within the range covered by this reference, the pump body operates under conditions of continuous exposure to saltwater and vibration from the propulsion assembly, factors that accelerate wear on the housing and sealing seats. A pump body in poor condition not only reduces impeller performance, but can cause severe engine overheating with consequent damage to cylinder head gaskets, pistons and cylinders.
When to Replace This Part?
The most common symptoms indicating that the water pump body should be replaced are: weak or irregular water discharge from the tell-tale port, elevated temperature signal on the gauge, absence of cooling flow after verifying the impeller is in good condition, and visible signs of corrosion, cracks or wear on the internal walls of the housing. It is recommended to inspect the pump body at each seasonal service or whenever the impeller is replaced—typical interval of 300 to 400 hours of operation—, taking advantage of disassembly to verify the housing condition at no additional labor cost. Replace the body preventively when advanced corrosion is detected to avoid breakdowns at sea and protect the remaining cooling circuit components.
Compatible Johnson/Evinrude Engines
| Series | Models |
|---|---|
| E35 | E35AELCDE 1986, E35AELCUD 1987, E35ARLCDE 1986, E35ARLCUD 1987 |
| E40 | E40AELCCS 1988, E40ARLCCS 1988, E40ATLCCS 1988, E40ECCS 1988, E40ECDE 1986, E40ECOB 1985, E40ECRM 1984, E40ECUD 1987, E40ELCCS 1988, E40ELCDE 1986, E40ELCOB 1985, E40ELCRM 1984, E40ELCUD 1987, E40RCCS 1988, E40RCDE 1986, E40RCOB 1985, E40RCRM 1984, E40RCUD 1987, E40RLCCS 1988, E40RLCDE 1986, E40RLCOB 1985, E40RLCRM 1984, E40RLCUD 1987, E40TECCS 1988, E40TECDE 1986, E40TECOB 1985, E40TECRM 1984, E40TECUD 1987, E40TELCCS 1988, E40TELCDE 1986, E40TELCOB 1985, E40TELCRM 1984, E40TLCCS 1988, E40TLCDE 1986, E40TLCUD 1987, E40TTLCCS 1988 |
| E45 | E45RCCDS 1986, E45RCCUC 1987, E45RCE 1989, E45RCEIA 1991, E45RCENM 1992, E45RCERE 1994, E45RCESR 1990, E45RCETB 1993, E45RCLCDS 1986, E45RCLCUC 1987, E45RCLE 1989, E45RCLEIA 1991, E45RCLENM 1992, E45RCLERE 1994, E45RCLESR 1990, E45RCLETB 1993, E45WMLE 1989, E45WMLEIA 1991, E45WMLENM 1992, E45WMLESR 1990 |
| E48 | E48ESLCCC 1988, E48ESLCUS 1987 |
| E50 | E50BECCS 1988, E50BECDE 1986, E50BECIC 1981, E50BECNR 1982, E50BECOB 1985, E50BECRM 1984, E50BECTA 1983, E50BECUD 1987, E50BELCCS 1988, E50BELCDE 1986, E50BELCIC 1981, E50BELCNR 1982, E50BELCOB 1985, E50BELCRM 1984, E50BELCTA 1983, E50BELCUD 1987, E50ECSR 1980, E50ELCSR 1980, E50TELCCS 1988, E50TELCDE 1986, E50TELCOB 1985, E50TELCRM 1984, E50TELCTA 1983, E50TELCUD 1987, E50TLCCS 1988, E50TLCDE 1986, E50TLCOB 1985, E50TLCRM 1984, E50TLCUD 1987 |
| E55 | E55RCIM 1981, E55RLCSA 1980, E55RSLN 1983, E55RSLN-2 1983, E55RSN 1983, E55RSN-2 1983, E55RSYN 1983, E55RSYN-2 1983, E55RWLCDC 1986, E55RWLCOS 1985, E55RWLCRD 1984, E55RWLCUC 1987, E55RWLE 1989, E55RWLEIA 1991, E55RWLENM 1992, E55RWLERE 1994, E55RWLESR 1990, E55RWLETB 1993, E55TLCIM 1981 |
| E60 | E60ECIA 1981, E60ECIH 1981, E60ECNM 1982, E60ECSR 1980, E60ECTB 1983, E60ELCIA 1981, E60ELCIH 1981, E60ELCNM 1982, E60ELCOD 1985, E60ELCRE 1984, E60ELCSR 1980, E60ELCTB 1983, E60TLCIA 1981, E60TLCIH 1981, E60TLCNM 1982, E60TLCOD 1985, E60TLCRE 1984, E60TLCTB 1983 |
| J35 | J35AELCDE 1986, J35AELCUD 1987, J35ARLCDE 1986, J35ARLCUD 1987 |
| J40 | J40AELCCS 1988, J40ARLCCS 1988, J40ATLCCS 1988, J40ECCS 1988, J40ECDE 1986, J40ECOB 1985, J40ECRM 1984, J40ECUD 1987, J40ELCCS 1988, J40ELCDE 1986, J40ELCOB 1985, J40ELCRM 1984, J40ELCUD 1987, J40RCCS 1988, J40RCDE 1986, J40RCOB 1985, J40RCRM 1984, J40RCUD 1987, J40RLCCS 1988, J40RLCDE 1986, J40RLCOB 1985, J40RLCRM 1984, J40RLCUD 1987, J40TECCS 1988, J40TECDE 1986, J40TECOB 1985, J40TECRM 1984, J40TECUD 1987, J40TELCCS 1988, J40TELCDE 1986, J40TELCOB 1985, J40TELCRM 1984, J40TLCCS 1988, J40TLCDE 1986, J40TLCUD 1987, J40TTLCCS 1988 |
| J45 | J45RCCDS 1986, J45RCCUC 1987, J45RCE 1989, J45RCEIA 1991, J45RCENM 1992, J45RCERE 1994, J45RCESR 1990, J45RCETB 1993, J45RCLCDS 1986, J45RCLCUC 1987, J45RCLE 1989, J45RCLEIA 1991, J45RCLENM 1992, J45RCLERE 1994, J45RCLESR 1990, J45RCLETB 1993, J45WMLE 1989, J45WMLEIA 1991, J45WMLENM 1992, J45WMLESR 1990 |
| J48 | J48ESLCCC 1988, J48ESLCUS 1987 |
| J50 | J50BECCS 1988, J50BECDE 1986, J50BECIC 1981, J50BECNR 1982, J50BECOB 1985, J50BECRM 1984, J50BECTA 1983, J50BECUD 1987, J50BELCCS 1988, J50BELCDE 1986, J50BELCIC 1981, J50BELCNR 1982, J50BELCOB 1985, J50BELCRM 1984, J50BELCTA 1983, J50BELCUD 1987, J50ECSR 1980, J50ELCSR 1980, J50TELCCS 1988, J50TELCDE 1986, J50TELCOB 1985, J50TELCRM 1984, J50TELCTA 1983, J50TELCUD 1987, J50TLCCS 1988, J50TLCDE 1986, J50TLCOB 1985, J50TLCRM 1984, J50TLCUD 1987 |
| J55 | J55RCIM 1981, J55RLCIM 1981, J55RLCSA 1980, J55RSLN 1983, J55RSLN-2 1983, J55RSN 1983, J55RSN-2 1983, J55RSYN 1983, J55RSYN-2 1983, J55RWLCDC 1986, J55RWLCOS 1985, J55RWLCRD 1984, J55RWLCUC 1987, J55RWLE 1989, J55RWLEIA 1991, J55RWLENM 1992, J55RWLERE 1994, J55RWLESR 1990, J55RWLETB 1993 |
| J60 | J60ECIA 1981, J60ECIH 1981, J60ECNM 1982, J60ECSR 1980, J60ECTB 1983, J60ELCIA 1981, J60ELCIH 1981, J60ELCNM 1982, J60ELCOD 1985, J60ELCRE 1984, J60ELCSR 1980, J60ELCTB 1983, J60TLCIA 1981, J60TLCIH 1981, J60TLCNM 1982, J60TLCOD 1985, J60TLCRE 1984, J60TLCTB 1983 |
| M55 | M55RWLR 1988 |
| Otros | 50902C 1979, 50903C 1979, 50R79C 1979, 50RL79C 1979, 55642E 1976, 55643E 1976, 55672E 1976, 55673E 1976, 55772D 1977, 55773D 1977, 55874S 1978, 55875S 1978, 55974C 1979, 55975C 1979, 55E76E 1976, 55E77D 1977, 55E78S 1978, 55E79C 1979, 55EL76E 1976, 55EL77D 1977, 55EL78S 1978, 55EL79C 1979, MISCELLANEOUS 1972, MISCELLANEOUS 1973, MISCELLANEOUS 1974, MISCELLANEOUS 1975, MISCELLANEOUS 1976, MISCELLANEOUS 1977 |
| R45 | R45RCLR 1988, R45RCR 1988 |
| R55 | R55RWLR 1988 |
| S45 | S45RCLR 1988, S45RCR 1988 |
| VE48 | VE48ESLCCC 1988 |
| VJ48 | VJ48ESLCCC 1988 |
Equivalent Manufacturer References
| Manufacturer/Brand | Reference/Part Number |
|---|---|
| OMC | 0384087, 384087 |
