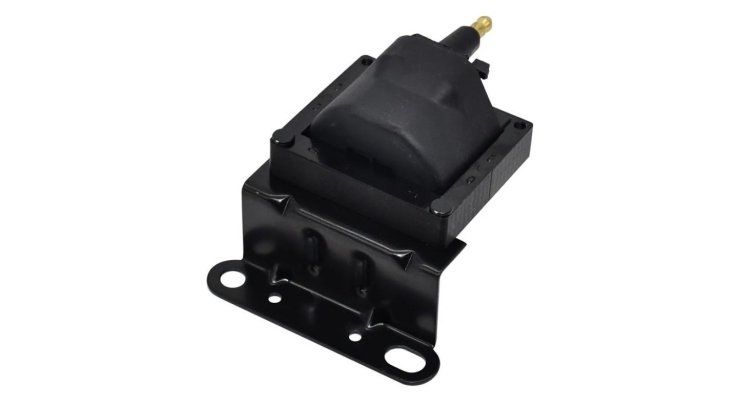

IGNITION COIL 4L V6 V8 898253T27 REC3854002

Function and technical context

The ignition coil module acts within the ignition system by transforming the low voltage of the battery into the high voltage necessary to ionize the spark plug electrode and cause the spark that initiates combustion. It works in close coordination with the ignition control unit, the distributor and the high-voltage wiring, forming the core of the primary and secondary ignition circuit in marine petrol engines with electronic injection and TBI. In inline four-cylinder, V6 and V8 architectures—with displacements ranging from 3.0 to 8.2 liters—the precision of the ignition pulse directly determines combustion efficiency, cold starting and engine response at full load. A degraded module causes intermittent misfires, loss of power, increased fuel consumption and even the inability to start the boat, making it a critical component for safety and operability in navigation.

When to replace this part?

The most common symptoms of a damaged ignition coil module are: difficult or irregular starting, especially when cold; jerks or hesitations at cruising speed; failure in one or more cylinders detected as abnormal engine vibration; and in advanced cases, sudden engine shutdown under load. This type of component does not have a fixed replacement interval based on hours of use, but it is advisable to inspect it at each seasonal inspection, checking the state of the insulation, the absence of cracks in the casing and the output voltage with a multimeter. Replacing it preventively at the first symptoms avoids being left without propulsion on the high seas, where a fault in the ignition system has no solution on board.
