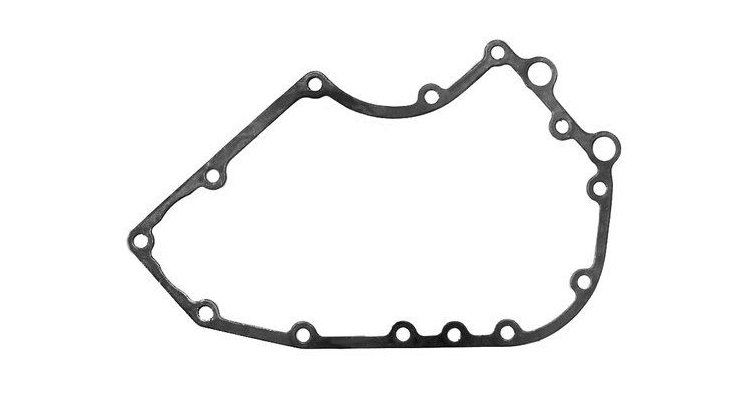

Front Retaining Cover Gasket Yanmar 121575-01510

Function and technical context

The front seal cover gasket is part of the gear housing sealing system (callout 7, section 3 of the Yanmar breakdown), acting as a watertight barrier between the seal cover and the block. Its purpose is to prevent lubrication oil from leaking out of the engine in the front area of ​​the gear train. When this gasket loses elasticity or deteriorates, oil drips appear on the front of the engine which, if not addressed, can compromise internal lubrication and cause premature wear on the components of the distribution train. The official Yanmar part number for this gasket is 121575-01510, and its installation requires one unit per engine.

When to replace this part?

The most common symptoms of deterioration in a seal cover gasket are the presence of oil stains or streaks in the front area of the engine, a gradual drop in the oil level without apparent cause, and the smell of burnt oil when it falls on hot surfaces of the block. It is recommended that this gasket be inspected during each seasonal maintenance and replaced whenever work is done on the gear housing or the front seal is changed, since reusing a compressed gasket usually results in leaks immediately after assembly. Performing the change preventively during a scheduled inspection avoids having to repeat the disassembly of the casing and reduces the risk of breakdowns due to oil loss while sailing.
