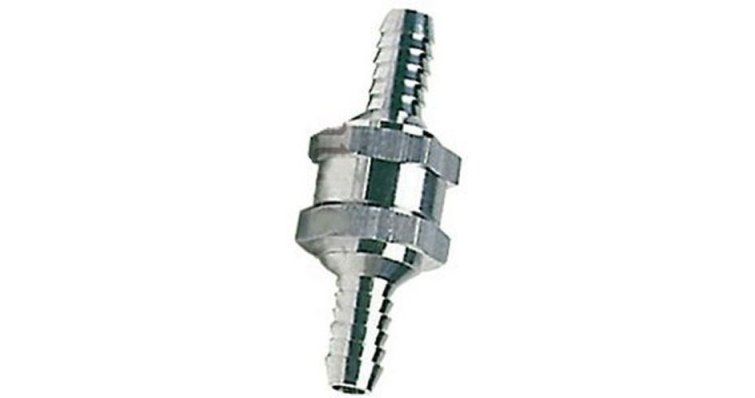

COMB. NON-RETURN VALVE 10MM

Function and technical context

This 10 mm fuel non-return valve is part of the fuel supply system of the outboard or marine stationary engine, acting as a one-way barrier that prevents the backflow of fuel into the supply line. Its mission is to ensure that the fuel flows only in the correct direction, maintaining the pressure in the circuit and preventing the engine from losing prime when stopped. If this component fails or is blocked, the engine may have starting difficulties, intermittent power losses or power failures that compromise navigation. The 10 mm connection makes it suitable for fuel pipes with that internal diameter, and it is essential to respect this caliber during installation to guarantee the tightness of the circuit.

When to replace this part?

The most common symptoms of a damaged fuel non-return valve include difficult starting or the need to manually pump the primer bulb several times before the engine starts, as well as engine shutdowns due to lack of fuel at full load or during hard acceleration. It is recommended to inspect this valve during each seasonal maintenance, since the internal rubber and the closing seat degrade over time due to the action of modern fuels containing ethanol. Replacing it preventively at the slightest symptom of loss of priming avoids being left without propulsion at sea and protects the rest of the injection or carburetion system from air entry.
