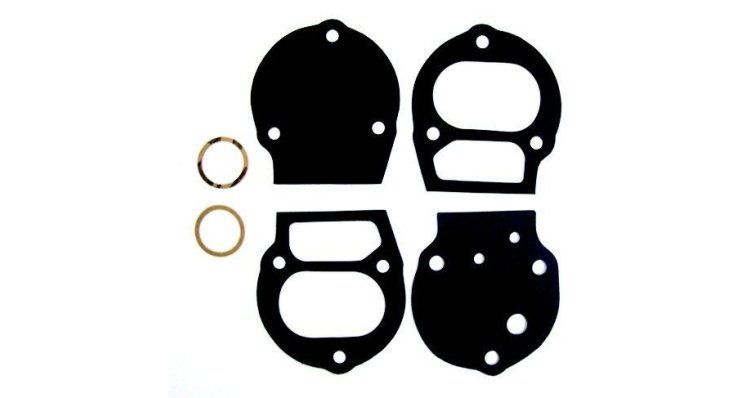

FUEL PUMP SEAL KIT 56678A1

Function and technical context

This gasket kit is a critical component of the fuel delivery system on Mercury 4-cylinder engines. The gaskets that make up this assembly ensure the tightness of the fuel pump, avoiding internal leaks that would compromise the pressure necessary for a continuous and regulated supply of fuel to the injectors or carburetor. When gaskets degrade over time and exposure to aggressive fuels, the pump loses its ability to create the required vacuum and pressure, resulting in misfires, unstable idling, or inability to start the engine. Its preventive replacement in planned maintenance guarantees the reliability of the power system and avoids unexpected stops in navigation.

When to replace this part?

The fuel pump seals show signs of aging through visible leaks at the base of the pump, difficulties starting the engine when cold, loss of fuel pressure detected with a pressure gauge, or fuel accumulation in the crankcase due to internal dripping. It is recommended to check and replace the gasket kit every 5-7 years or during seasonal maintenance checks, especially if the engine has been stored for long periods or if fuel of questionable quality has been used. Preventive replacement of this kit is a minimal investment compared to complex motor repairs resulting from power failures.

Equivalent manufacturer part numbers
