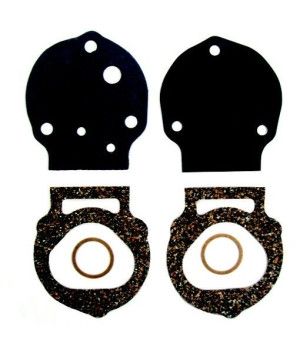

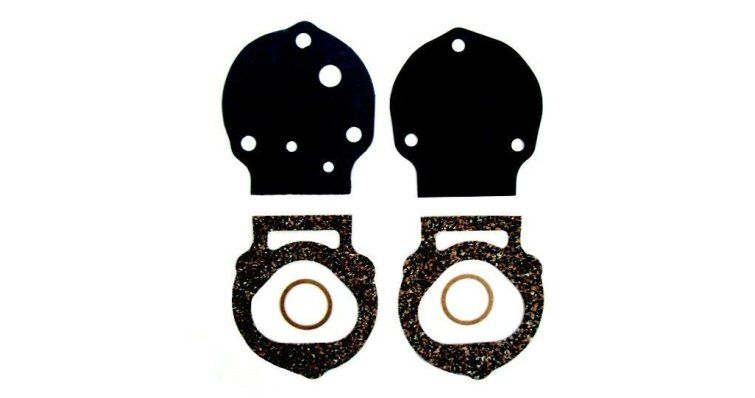

FUEL PUMP GASKET KIT 23014A1

Function and technical context

This gasket kit is an essential component of the fuel feed system on Mercury, Mariner and Mercruiser marine engines. The fuel pump depends on a set of gaskets and diaphragms to maintain internal tightness and ensure reliable operation of the fuel distribution circuit. The diaphragm gaskets are responsible for sealing the internal chambers of the pump, allowing it to generate the pressure and flow necessary to properly feed the injectors or carburetor. A deterioration of these seals compromises the fuel pressure, which causes loss of performance, starting difficulties and, in extreme cases, unexpected stops while navigating.

When to replace this part?

The fuel pump diaphragm seals present typical symptoms of wear such as fuel leaks around the pump, progressive loss of pressure in the supply circuit, or difficulties starting the engine, especially after periods of prolonged rest. It is recommended to check the condition of these gaskets during each seasonal maintenance or when irregularities in engine operation related to the fuel supply are detected. The preventive replacement of the gasket kit is an economical operation that avoids more expensive repairs and guarantees the reliability of the system in navigation.

Equivalent manufacturer part numbers
