STAINLESS STEEL FILTER SUPPORT

Function and technical context

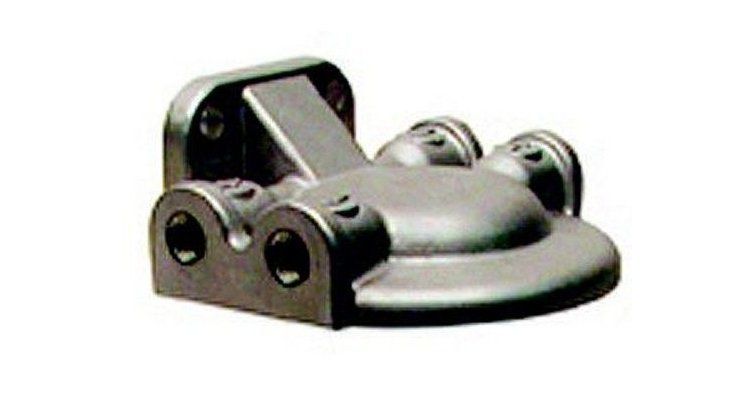

The 25030 stainless steel filtration support acts as a structural distribution component in the cooling and lubrication circuits of marine engines, allowing the fluid to circulate uniformly through the filter elements to the critical areas of the propeller. Its 3/8" intakes connect directly to standard pipes and hoses, ensuring the hydraulic continuity of the system without pressure losses. The bronze plugs and extension tubes guarantee the absolute tightness of the installation, an essential requirement in saltwater environments where galvanic corrosion can quickly compromise supports made of conventional materials. The complete stainless steel construction significantly prolongs the useful life of the filter assembly, being especially decisive in boats that operate on prolonged navigations or in coastal areas with high salinity, where any leak in the cooling circuit or in the lubrication circuit can lead to engine overheating or insufficient oil pressure.

When to replace this part?

It is advisable to inspect the bracket and its threaded connections during each seasonal maintenance: the most common symptoms of deterioration are persistent leaks in the joint areas, discoloration or corrosion pitting on the body of the bracket, and loosening of the brass plugs after years of exposure to aggressive marine environments. Unlike filter elements, which follow a periodic replacement interval, the support must be changed as soon as any indication of loss of structural integrity or tightness is detected, since a failure in this component can suddenly interrupt the flow of coolant or lubricant during navigation. Preventive replacement in the event of the slightest doubt prevents serious engine breakdowns on the high seas, where the consequences of overheating or poor lubrication are particularly costly to resolve.

Compatibility
