STAINLESS STEEL FILTER SUPPORT

Function and technical context

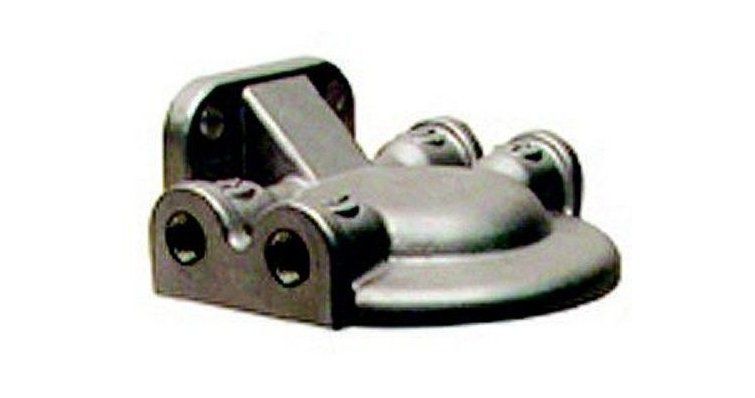

This 316 stainless steel filtration support acts as a distribution manifold within the cooling circuit, channeling the water flow to the filter elements so that only clean, sediment-free water reaches the impeller cooling ducts. The 1/4" intakes allow safe integration into the intake lines, ensuring a tight connection in both freshwater and saltwater environments. Their function is critical: if the support shows corrosion, cracks or loss of tightness, a filter bypass occurs that allows the passage of abrasive particles into the engine block, compromising the thermal performance and shortening the useful life of the cooling components. The 316 stainless steel manufacturing guarantees superior resistance to corrosion. galvanic and the agents of the marine environment.

When to replace this part?

The most common symptoms of deterioration in a filter support are: visible drips in the connections, rust or corrosion residues around the intakes, loss of pressure in the cooling circuit and deformations or cracks in the body walls. When navigating through salt water or in areas with a high concentration of sediment, it is recommended to inspect the component every 100-150 hours of operation and replace it preventively if there is any sign of deterioration in threads, plugs or joints. An early change prevents damage to the engine block and guarantees effective cooling throughout the entire boating season.
