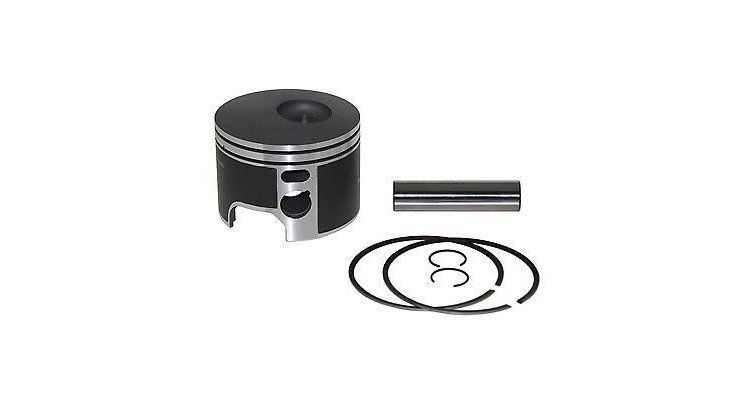

E-tec Std Piston Port WI3209PS

Function and Technical Context

The piston is the central component of the power assembly in a two-stroke outboard engine, responsible for converting combustion energy into mechanical movement within the cylinder. In Evinrude E-TEC engines, the piston design is optimized to work with direct fuel injection, withstanding extreme pressures and thermal cycles inherent to this technology. This piston corresponds to the port side and features a standard (Std) measurement of 3.583 inches in diameter, ensuring precise fit with the cylinder to maintain proper compression and prevent gas leakage. A worn or damaged piston directly compromises the compression of the affected cylinder, causing loss of power, irregular fuel consumption and, in severe cases, damage to the cylinder sleeve that significantly increases repair costs.

When to Replace This Component?

The most common symptoms of wear in an E-TEC engine piston include notable loss of compression in the port cylinder, persistent bluish smoke in the exhaust due to oil burn, abnormal vibrations at idle and difficult starting accompanied by irregular operation at low RPM. In two-stroke engines with intensive use, it is recommended to inspect the condition of the pistons and their rings at each cylinder head removal or at least every 300-500 hours of operation, depending on the duty cycle and conditions of use. Replacing the piston preventively at the first signs of wear prevents the problem from spreading to the sleeve, piston rings and crankshaft, turning a minor repair into a major and costly overhaul.
