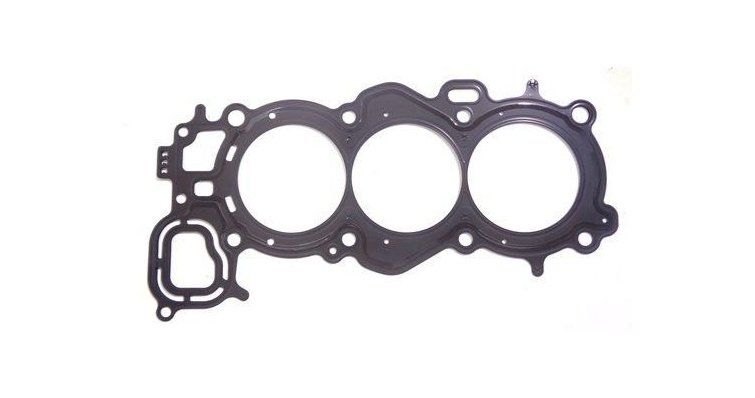

YAMAHA 6CB-11181-00 CYLINDER HEAD GASKET

Function and technical context

The head gasket is a critical component that tightly seals the joint between the engine block and cylinder head on Yamaha F and LF series outboard engines. This gasket guarantees the tightness of the combustion chambers, preventing leaks of exhaust gases, coolant and engine oil to the outside or between internal circuits. Its correct operation is essential to maintain cylinder compression, lubrication pressure and the integrity of the cooling system. Failure of this gasket causes loss of power, engine overheating, water entering the crankcase and, ultimately, irreversible damage to the cylinders and pistons.

When to replace this part?

Head gaskets require replacement when symptoms appear such as visible coolant leaks under the cylinder head, oil emulsification (milky appearance), abnormal increase in engine temperature or loss of power without apparent cause in power supply or ignition. Although there is no fixed maintenance interval, this gasket should be inspected at each seasonal inspection and replaced preventively if the engine has accumulated more than 1000-1500 hours of operation or shows a history of overheating. Replacing this gasket preventively after intense work avoids exponentially more expensive complete engine repairs.

Engine Compatibility

Equivalent manufacturer part numbers
