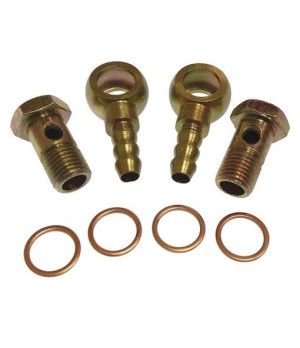

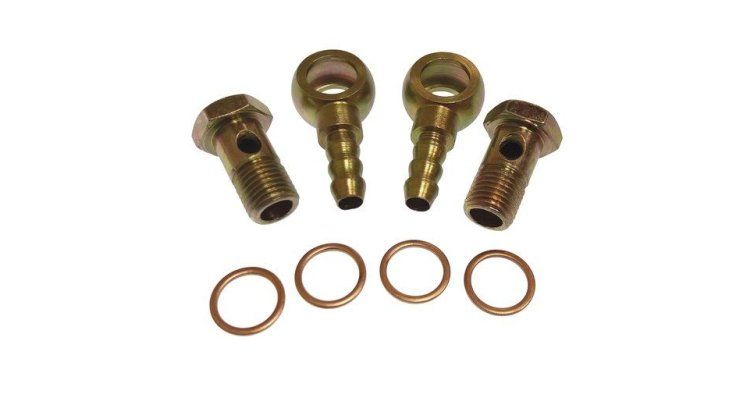

8mm SWIVEL FITTINGS KIT CAV

Function and technical context

The 8 mm swivel fittings are articulated connectors integrated into the fuel supply circuit of marine engines, whose mission is to join sections of rigid pipe with system components, allowing free rotation between both ends without compromising the tightness of the line. Working in the fuel supply system, these fittings continuously absorb the vibrations and micromovements generated by the engine block during its operation, avoiding mechanical fatigue of the pipes and the consequent cracking or breakage of joints. If these connectors fail or lose tightness, the immediate result is a fuel leak that can lead to loss of pressure in the circuit, unexpected engine stops or, in the worst case scenario, a risk of fire on board. Their 8 mm diameter makes them especially suitable for medium power propulsion configurations, where the flow rate and working pressure of the fuel line are within the usual range for this caliber.

When to replace this part?

The most common symptoms of deterioration in rotating fuel fittings are the presence of stains or fuel odor in the bilge or in the Racor filter area, difficulty in rotating the connector without applying excessive force and the detection of microcracks or visible deformations in the body of the fitting during visual inspection. It is recommended to check these connectors during each seasonal maintenance, paying special attention to the condition of the internal seals and the freedom of rotation, since the hardening of the elastomers due to exposure to engine heat is the most frequent cause of progressive leaks. Replacing the kit preventively at the first sign of rigidity or humidity avoids navigation breakdowns that are considerably more expensive to resolve than the replacement itself.

Equivalent manufacturer part numbers
