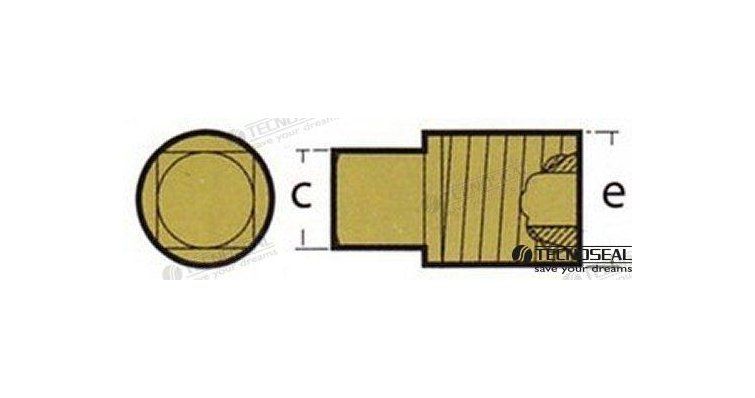

GM COOLING ANODE PLUG

Function and technical context

The anode plug for the cooling circuit of General Motors engines is a sacrificial component strategically housed in the block or at key points of the seawater cooling system. Its main mission is to protect the internal metal surfaces of the engine against galvanic corrosion, an electrochemical process that is accelerated in saline or brackish marine environments. Acting as a sacrificial metal, the anode oxidizes in place of the water passages, heat exchanger and other metal parts of the cooling circuit, preserving the structural integrity of the engine over time. Without this properly functioning anode plug, the noble components of the cooling system are exposed to progressive and irreversible degradation that can lead to leaks, blockage of ducts and, ultimately, catastrophic engine failure due to overheating.

When to replace this part?

The cooling anodes must be inspected at the beginning and end of each nautical season, and replaced when they show wear greater than 50% of their mass, when reddish oxide deposits appear in the cooling circuit or when an abnormal operating temperature is detected that may indicate obstruction or internal corrosion. At least annual preventive replacement is recommended, regardless of apparent visual condition, as a depleted anode leaves the system unprotected in a matter of weeks in salt water. Replacing it at each seasonal inspection is the most economical measure to avoid major cylinder head, block or exchanger repairs that can multiply the cost of a simple maintenance intervention.
