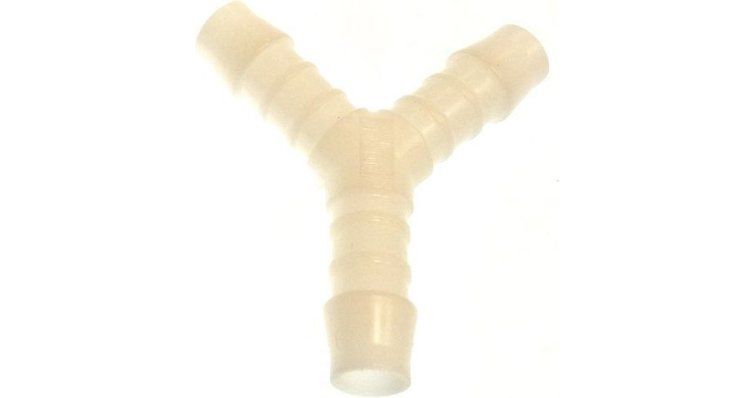

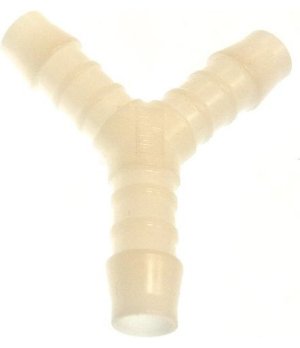

Connector Plastic 10 mm (Series 2)

Function and technical context

This 10 mm polyamide connector (Series 2) acts as a structural connector in on-board fluid lines, guaranteeing a watertight connection between sections of hose or pipe in cooling, fuel or water evacuation systems. Polyamide is a material especially valued in marine environments for its resistance to corrosion, hydrocarbons and constant humidity, essential qualities in nautical facilities subjected to thermal cycles and continuous vibrations. A fitting in poor condition can cause leaks in the circuit where it is installed, with consequences ranging from loss of system efficiency to serious breakdowns due to overheating or entry of fluid into unwanted areas. The Series 2 designation indicates a family of connectors with specific geometry and tolerances, so it is critical to adhere to the series when replacing to ensure dimensional compatibility and proper fit.

When to replace this part?

Plastic or polyamide splices must be inspected during each seasonal maintenance, since over time they can present microcracks, deformations due to thermal fatigue or softening in the adjustment area that compromise the tightness of the joint. The most common symptoms of a damaged connector are the appearance of moisture or stains around the fitting, a visible reduction in flow when driving or the detection of a fuel smell in the case of fuel lines. Replacing this type of connectors preventively, without waiting for the leak to become evident, avoids unplanned stops and protects higher-cost components located downstream of the circuit.

Compatibility table
