Plumbing Fitting Naval Bronze 57x57 mm

Function and technical context

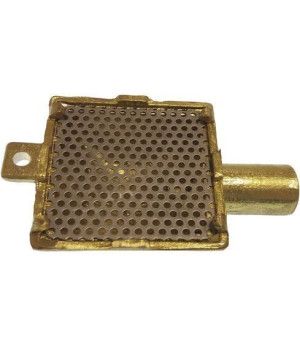

This bilge grate is part of the bilge water evacuation system in recreational and work boats, being installed in the hull or on bulkheads to allow controlled drainage of the water accumulated in the bilge to the outside. Made of naval bronze, it offers superior corrosion resistance in saltwater and freshwater marine environments, while the stainless steel protective grille prevents the entry of solid objects and debris that could clog the bilge pump. The 57x57 mm square base and the 19 mm (3/4") connection make it compatible with the most common bilge hoses in standard nautical installations. A grate in poor condition or leaks compromises the watertightness of the hull and can nullify the effectiveness of the entire bilge installation.

When to replace this part?

The most common symptoms that indicate the need to replace a bilge grate are visible corrosion on the bronze body or stainless steel mesh, deformations that prevent the correct fit against the hull, water leaks around the perimeter seal or deterioration of the mesh that allows debris to pass into the hose. It is recommended to inspect this accessory during each seasonal maintenance, checking the state of the sealing, the integrity of the mesh and the absence of verdigris or calcareous deposits that reduce the passage section. Replacing the grate preventively at the first sign of deterioration prevents unwanted infiltration and ensures that the drainage system responds effectively to unexpected water ingress.

Compatibility table
