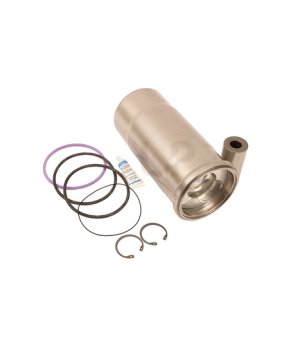

Piston Liner Kit Volvo 3827380

Function and technical context

The piston sleeve kit for Volvo Penta engines works in the displacement system, providing the sliding surface on which the piston performs its alternative stroke during the intake, compression, expansion and exhaust cycles. The cylinder liner acts as a sealing barrier between the combustion chamber and the water cooling circuit, preventing pressurized gases from contaminating the lubricant and coolant from penetrating the cylinder. Its surface finish and dimensional tolerances are decisive in maintaining adequate compression, optimizing oil consumption and guaranteeing efficient heat transfer to the engine block. Wear or cracking of the liner directly compromises engine power, increases emissions and can lead to serious failure of the piston-connecting rod assembly, especially in marine propulsion and industrial generation applications where these TAMD, TAD, TWD, TID and TD series engines operate under continuous load demands.

When to replace this part?

The most common symptoms of wear or failure in the cylinder liner include progressive loss of compression detected in differential measurement between cylinders, high consumption of engine oil with the emission of bluish smoke from the exhaust, presence of coolant in the crankcase or oil in the cooling circuit, and metallic knocking inside the block associated with excessive clearance between piston and liner. In continuous duty marine engines such as Volvo Penta TAMD72, TAMD73, TAD730, TWD710, TWD731 and related series, it is recommended to inspect the condition of the liners during each major overhaul or when the maintenance intervals established by the manufacturer for these high displacement blocks are exceeded. Replacing the liner and piston kit preventively when detecting the first signs of wear avoids larger repairs to the engine block and guarantees the reliability of propulsion or generation in demanding work situations.

Compatible Volvo Engines

Equivalent manufacturer part numbers
