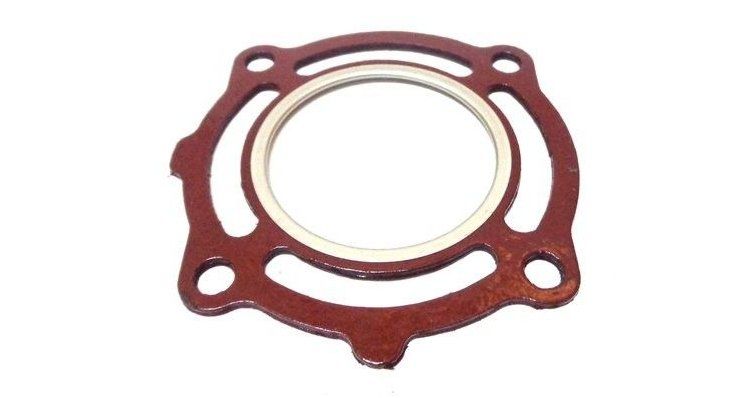

YAMAHA CYLINDER HEAD GASKET 6F8-11181-A1 REC6F8-11181-A0

Function and technical context

The head gasket is a critical component of the Yamaha marine engine's airtight seal that prevents the leakage of combustion gases, coolant and oil from the combustion chamber into the crankcase. It is located between the cylinder head and the engine block, subjected to extreme pressure and temperature cycles during operation. Its integrity is essential to maintain cylinder compression, prevent water from entering the lubrication circuit and ensure an effective seal in the internal cooling system. Deterioration of this gasket compromises the sealing of the engine and can lead to overheating, loss of power and serious internal corrosion.

When to replace this part?

Failure symptoms include visible loss of coolant with no external leaks identified, oil emulsification (milky appearance on the dipstick), gases escaping through the crankcase ventilation hole, and abnormal engine overheating while cruising. Although there is no set interval of hours, a worn head gasket should be replaced immediately when these signs are detected, especially before the intensive boating season. Replacing this part preventively after major repairs to the cylinder head guarantees safe operation and avoids costly breakdowns in navigation.

Equivalent manufacturer part numbers
