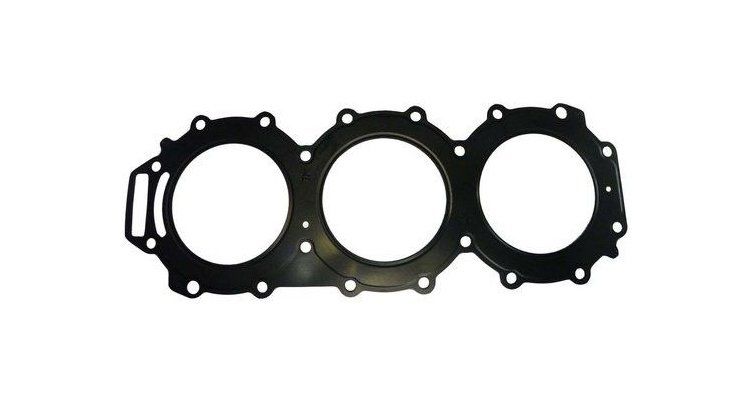

YAMAHA CYLINDER HEAD GASKET 6D0-11181-00

Function and technical context

The head gasket is the critical sealing component that ensures tightness between the cylinder head and engine block on Yamaha outboard engines. This part works on the engine's internal sealing system, supporting compression pressures and extreme temperatures derived from combustion. Its main function is to prevent leaks of combustion gases, coolant and oil into unwanted spaces, maintaining the structural integrity of the combustion chamber. Failure or degradation of this gasket causes loss of compression, engine overheating, water entry into the crankcase and, in serious cases, engine seizure or irreversible damage to cylinders.

When to replace this part?

Typical symptoms of aging or failure of the head gasket include loss of compression diagnosable with a pressure gauge, emission of white smoke from the exhaust, abnormal increase in coolant temperature during navigation, and presence of oil in the cooling circuit. It is recommended to inspect the condition of the gasket at each seasonal maintenance, especially after more than 500-600 hours of operation or after years of prolonged storage. Preventive replacement during a general cylinder head overhaul avoids costly breakdowns in the middle of the sea and guarantees engine performance.
