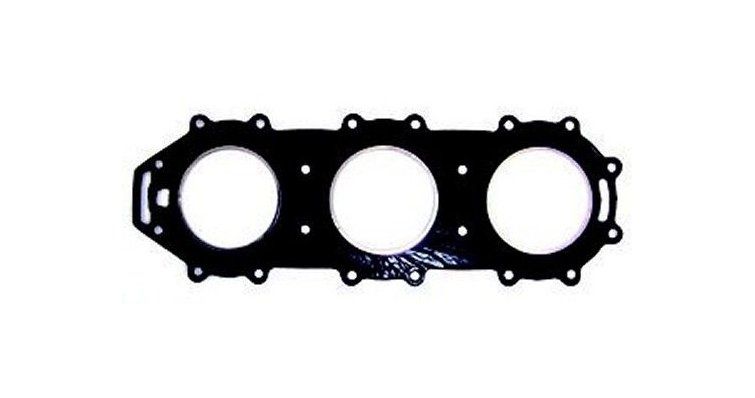

CYLINDER HEAD GASKET 11141-87D61

Function and technical context

The head gasket is the sealing element that seals the joint between the engine block and the cylinder head, ensuring that the combustion gases, coolant and oil remain in their respective circuits without mixing or leaking. It works simultaneously in the combustion system, the cooling circuit and the lubrication circuit, supporting continuous cycles of extreme pressure and temperature typical of a high-performance outboard engine such as the Suzuki V6. Its integrity is decisive for the correct sealing of the combustion chambers and for maintaining the necessary compression pressure in each cylinder. A failure in this component can lead to loss of compression, mixing of coolant with oil, overheating of the engine or entry of gases into the cooling circuit, with potentially serious consequences for the entire engine.

When to replace this part?

The most common symptoms of deterioration of a head gasket include white or bluish smoke from the exhaust, bubbles in the coolant tank, progressive loss of compression in one or more cylinders, and the presence of foam or milky color in the crankcase oil indicative of mixing with water. In outboard engines with intensive use, it is recommended to inspect the head gasket whenever an intervention is carried out on the cylinder head or in the event of any episode of overheating, without waiting for obvious symptoms to appear. Replacing this component preventively after overheating or during a major overhaul avoids higher cost breakdowns and the possibility of being immobilized at sea.
