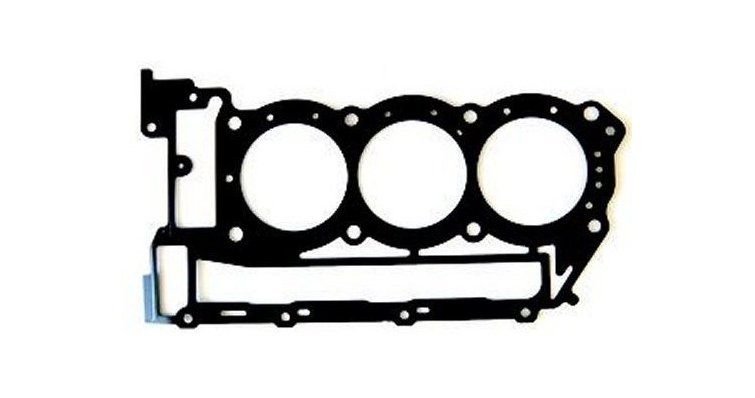

CYLINDER HEAD GASKET 11141-98J01

Function and technical context

The cylinder head gasket is the critical sealing element that seals the joint between the engine block and the cylinder head, guaranteeing the containment of combustion gases, coolant and oil in the corresponding passages without leaks occurring between circuits. In a high-power outboard such as the Suzuki DF200, DF225, DF250 and DF300, this component works under extreme thermal and mechanical cycles, supporting the pressure variations typical of large displacement four-stroke engines. A failure in the head gasket can lead to a mixture of coolant and oil, loss of compression, overheating of the engine or entry of water into the cylinders, situations that seriously compromise the integrity of the engine and can cause irreversible damage to the power unit.

When to replace this part?

The most common symptoms of head gasket deterioration include persistent white smoke from the exhaust, bubbles in the coolant reservoir, loss of compression detected in the cylinder test, or the presence of chocolate emulsion in the engine oil. In marine engines subjected to intensive use, it is recommended to inspect this component every time the cylinder head is disassembled for any reason, and to systematically replace it if there is any sign of leakage or after cylinder head grinding operations. Replacing the gasket preventively when detecting the first symptoms avoids major breakdowns that can leave the boat inoperative at sea.
