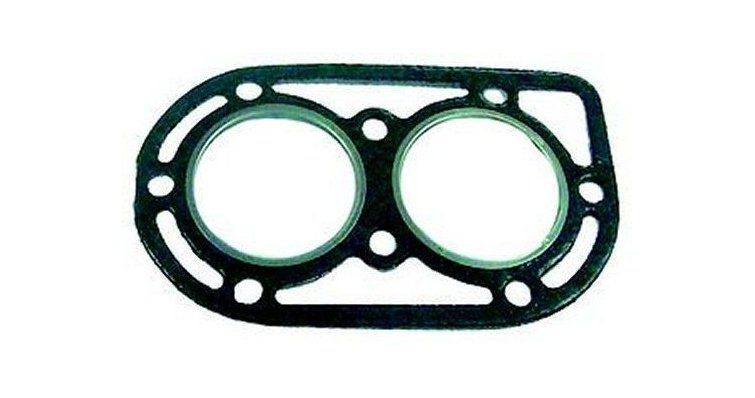

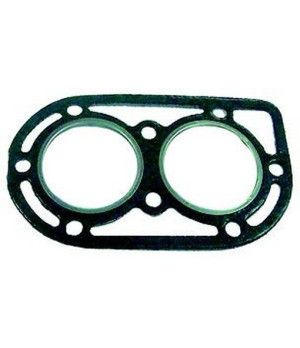

CYLINDER HEAD GASKET 11141-98130

Function and technical context

The head gasket is a critical sealing component located between the engine block and the cylinder head, whose mission is to hermetically seal the combustion chambers, cooling passages and lubrication channels. It works in the structural system of the outboard engine, continuously supporting the pressure differences generated by combustion and the thermal start and stop cycles. If this gasket deteriorates or loses its tightness, the engine may suffer fluid mixing—cooling water with oil or combustion gases—which causes a severe loss of performance and may lead to irreversible damage to the engine assembly. Its correct installation is decisive to guarantee the useful life of the propeller and the safety of the boat.

When to replace this part?

The most common signs that the head gasket has failed include: white or bluish smoke from the exhaust, loss of compression detected in a cylinder test, presence of a whitish emulsion in the oil or bubbles in the cooling circuit. On two-stroke outboard engines such as the small displacement Suzuki DT models, it is recommended that the head gasket be inspected at each seasonal inspection or when the head is removed for any other reason, as a used gasket should not be reused after being removed. Replacing it preventively during scheduled maintenance is always more economical than facing a major repair due to overheating or damage to the cylinder head while sailing.
