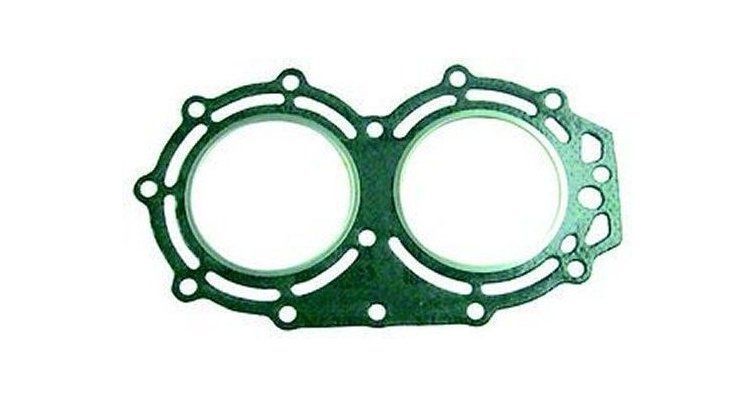

CYLINDER HEAD GASKET 11141-94440

Function and technical context

The head gasket is the sealing element that seals the joint between the engine block and the cylinder head, guaranteeing correct compression in the cylinders of the Suzuki DT40 outboard engine. It works in the combustion system, acting as a barrier between the water cooling circuits, oil passages and combustion chambers. Without a perfect seal, compression is lost, exhaust gases can contaminate the cooling circuit and seawater can penetrate the cylinders, causing serious and irreversible damage to the engine. Its correct installation is essential to maintain the thermal and mechanical performance of the propellant.

When to replace this part?

The most common symptoms of a deteriorated or blown head gasket are: loss of compression in one or more cylinders, presence of white or thick smoke in the exhaust (indicative of water or coolant in the combustion chamber), oil level that increases or emulsifies with a milky appearance, and recurrent engine overheating. It is recommended to inspect the head gasket every time the head is disassembled for any intervention, as well as in the event of any of the symptoms described, especially in engines with many hours of work or after episodes of overheating. Replacing the seal preventively during a general inspection avoids high-cost breakdowns and the possibility of becoming immobilized in the water.
