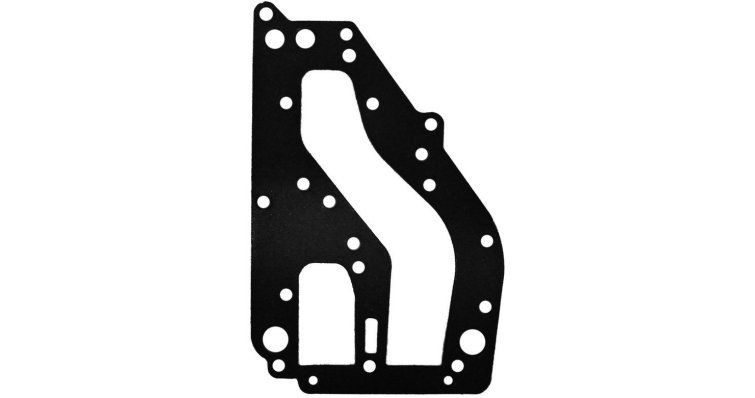

COOLING GASKET 27-84741M

Function and technical context

This cooling gasket is a watertight component that seals critical joints in the cooling circuit on Mercury Mariner and Yamaha marine engines. Its main function is to guarantee absolute tightness at the connection points of the cooling system, preventing leaks of fresh or salt water that could infiltrate the engine block. The failure of this gasket directly compromises the integrity of the cooling circuit, which generates pressure losses, engine overheating and, in severe cases, seawater entering the combustion chamber with the risk of catastrophic damage to the propellant.

When to replace this part?

Cooling gaskets require replacement when persistent drips are detected at the circuit connections, crystallization or salt deposits around the joints, or abnormal engine temperature readings. It is advisable to inspect it during each seasonal maintenance, especially after navigation in salt water where corrosion accelerates the deterioration of the seal. Replacing this gasket preventatively is an economical measure that prevents costly repairs due to water ingress or overheating in emergency situations at sea.

Engine Compatibility

Mercury/MerCruiser

Equivalent manufacturer part numbers
