Crankshaft connecting rod for Johnson Evinrude outboard motors 40 to 70 HP. Transmits combustion force from piston to crankshaft in J40, J50, J60, J70, E50, E60, E70 and higher families. Ref. 394462.
14 Days Return
Simple and fast returns management so you can shop with complete confidence.
Free shipping
On orders over €99
Technical Advice
Unsure about the replacement part? Contact us via WhatsApp and we'll verify the exact part for you.
100% Secure Payment
Transactions are protected with SSL and HTTPS encryption. Shop with complete peace of mind.

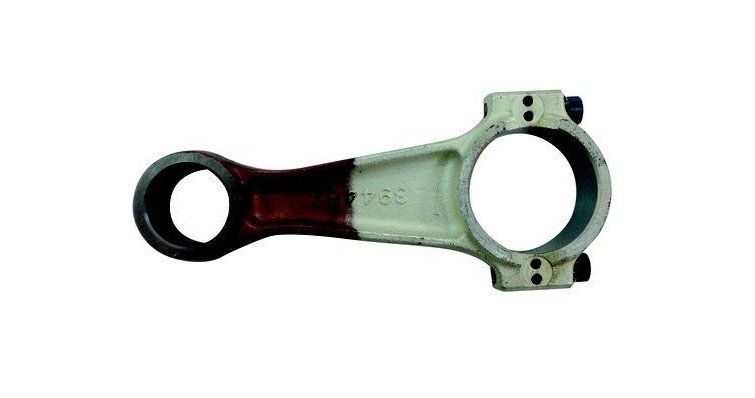

Connecting Rod 394462
REC394462
€99.55
Tax included
Crankshaft connecting rod for Johnson Evinrude outboard motors 40 to 70 HP. Transmits combustion force from piston to crankshaft in J40, J50, J60, J70, E50, E60, E70 and higher families. Ref. 394462.
Description
Function and Technical Context
The connecting rod is one of the most critical components of the connecting rod-crankshaft mechanism in 2-stroke outboard engines: its mission is to transmit the force generated by combustion from the piston to the crankshaft, converting the linear motion of the piston into the rotary rotation that drives the propeller. It operates in the mechanical power distribution system, continuously subjected to compression, tension and impact stresses in each ignition cycle. Wear or breakage of the connecting rod causes severe loss of power, abnormal vibration and even destruction of the engine block if not addressed in time. This reference 394462 (OMC 0394462) is specific to Johnson and Evinrude outboard engines of 40, 50, 60 and 70 HP manufactured between 1986 and 2001, guaranteeing the adjustment tolerances necessary for reliable operation in marine use conditions.
When to Replace This Component?
The most common symptoms of a damaged or worn connecting rod in outboard engines are: metallic knocking inside the block (known as "rod knock"), excessive vibration at any engine speed, sudden loss of compression in the affected cylinder and, in advanced cases, bluish smoke from the mixture of crankcase oil with combustion. It is recommended to inspect the condition of the connecting rod and its bearings during each seasonal service or after episodes of overheating, lack of lubrication or water entry into the cylinder. Replacing the connecting rod preventively at the first sign of looseness or bearing wear avoids catastrophic failures that can immobilize the vessel in open water and multiply repair costs.
Compatible Johnson/Evinrude Engines
| Series | Models |
|---|---|
| BE50 | BE50DTLEDC 1996, BE50DTLEUR 1997 |
| BE60 | BE60ELEDR 1996, BE60ELEUA 1997, BE60TLECM 1998, BE60TLEDR 1996, BE60TLEUA 1997 |
| BE70 | BE70ELECB 1998, BE70ELEDA 1996, BE70ELEUM 1997, BE70TLECB 1998, BE70TLEDA 1996, BE70TLEUM 1997 |
| BJ50 | BJ50DTLEDC 1996, BJ50DTLEUR 1997 |
| BJ60 | BJ60ELEDR 1996, BJ60ELEUA 1997, BJ60TLECM 1998, BJ60TLEDR 1996, BJ60TLEUA 1997 |
| BJ70 | BJ70ELECB 1998, BJ70ELEDA 1996, BJ70ELEUM 1997, BJ70PLEEE 1999, BJ70PLSIS elec start, TNT, 20 in shaft, n/a usa 2001, BJ70PLSSD Elec Start, TNT, 20 IN. shaft 2000, BJ70TLECB 1998, BJ70TLEDA 1996, BJ70TLEUM 1997 |
| E50 | E50DTLECA 1998, E50DTLEDC 1996, E50DTLEOS 1995, E50DTLEUR 1997, E50ELED 1996, E50ELEOS 1995, E50ELEUR 1997, E50TTLECA 1998, E50TTLEDC 1996, E50TTLEOS 1995, E50TTLEUR 1997 |
| E60 | E60ELCEA 1989, E60ELEDR 1996, E60ELEIB 1991, E60ELENE 1992, E60ELEOC 1995, E60ELERS 1994, E60ELERV 1994, E60ELESM 1990, E60ELETD 1993, E60ELEUA 1997, E60TLCEA 1989, E60TLECM 1998, E60TLEDR 1996, E60TLEIB 1991, E60TLENE 1992, E60TLEOC 1995, E60TLERS 1994, E60TLERV 1994, E60TLESM 1990, E60TLETD 1993, E60TLEUA 1997, E60TTLCEA 1989, E60TTLECM 1998, E60TTLEDR 1996, E60TTLEIB 1991, E60TTLENE 1992, E60TTLEOC 1995, E60TTLERS 1994, E60TTLERV 1994, E60TTLESM 1990, E60TTLETD 1993, E60TTLEUA 1997 |
| E65 | E65RSLC 1995, E65RSLM 1996, E65RSLZ2 1997, E65WELEES 1999, E65WELSIR Commercial, elec start, 20 in shaft 2001, E65WELSSC Commercial, Elec. Start, 20 IN. shaft 2000, E65WMLCUA 1987, E65WMLEIB 1991, E65WMLENE 1992, E65WMLEOC 1995, E65WMLERS 1994, E65WMLESM 1990, E65WMLETD 1993, E65WMLZ 1989, E65WRLEEO 1999, E65WRLEES 1999, E65WRLSIR commercial, rope start, 20 in shaft 2001, E65WRLSSC Commercial, Rope Start, 20 IN. shaft 2000, E65WRYEEO 1999, E65WRYEES 1999, E65WRYSIR commercial, rope start, 22.5 in shaft 2001, E65WRYSSC Commercial, Rope Start, 22.5 IN. shaft 2000 |
| E70 | E70ELCCA 1988, E70ELCDC 1986, E70ELCEM 1989, E70ELCUR 1987, E70ELEIE 1991, E70ELEND 1992, E70ELEOR 1995, E70ELERC 1994, E70ELERV 1994, E70ELESB 1990, E70ELETS 1993, E70TLCCA 1988, E70TLCDC 1986, E70TLCEM 1989, E70TLCUR 1987, E70TLECB 1998, E70TLEDA 1996, E70TLEIE 1991, E70TLEND 1992, E70TLEOR 1995, E70TLERC 1994, E70TLERV 1994, E70TLESB 1990, E70TLETS 1993, E70TLEUM 1997, E70TTLEIE 1991, E70TTLEND 1992, E70TTLEOR 1995, E70TTLERC 1994, E70TTLERV 1994, E70TTLETS 1993 |
| HE70 | HE70TXEDA 1996, HE70TXEUM 1997 |
| HJ70 | HJ70TXEDA 1996, HJ70TXEUM 1997 |
| J40 | J40JPLEEC 1999, J40JPLSIA jet drive,elec start, TNT, 20 in shaft 2001, J40JPLSSR Jet Drive, Elec Start, TNT, 20 IN. shaft 2000, J40JVLSIA jet drive,elec start, TNT, 20 in shaft, wht 2001 |
| J50 | J50DTLECA 1998, J50DTLEDC 1996, J50DTLEOS 1995, J50DTLEUR 1997, J50ELED 1996, J50ELEOS 1995, J50ELEUR 1997, J50TTLECA 1998, J50TTLEDC 1996, J50TTLEOS 1995, J50TTLEUR 1997 |
| J60 | J60ELCEA 1989, J60ELEDR 1996, J60ELEIB 1991, J60ELENE 1992, J60ELEOC 1995, J60ELERS 1994, J60ELERV 1994, J60ELESM 1990, J60ELETD 1993, J60ELEUA 1997, J60PLEEB 1999, J60PLSID elec start, TNT, 20 in shaft 2001, J60PLSSE Elec Start, TNT, 20 IN. shaft 2000, J60TLCEA 1989, J60TLECM 1998, J60TLEDR 1996, J60TLEIB 1991, J60TLENE 1992, J60TLEOC 1995, J60TLERS 1994, J60TLERV 1994, J60TLESM 1990, J60TLETD 1993, J60TLEUA 1997, J60TTLCEA 1989, J60TTLECM 1998, J60TTLEDR 1996, J60TTLEIB 1991, J60TTLENE 1992, J60TTLEOC 1995, J60TTLERS 1994, J60TTLERV 1994, J60TTLESM 1990, J60TTLETD 1993, J60TTLEUA 1997, J60VLSID elec start, TNT, 20 in shaft, wht 2001 |
| J65 | J65RSLC 1995, J65RSLM 1996, J65RSLZ2 1997, J65WELEES 1999, J65WELSIR Commercial, elec start, 20 in shaft 2001, J65WELSSC Commercial, Elec. Start, 20 IN. shaft 2000, J65WMLCUA 1987, J65WMLEIB 1991, J65WMLENE 1992, J65WMLEOC 1995, J65WMLERS 1994, J65WMLESM 1990, J65WMLETD 1993, J65WMLZ 1989, J65WRLEEO 1999, J65WRLEES 1999, J65WRLSIR commercial, rope start, 20 in shaft 2001, J65WRLSSC Commercial, Rope Start, 20 IN. shaft 2000, J65WRYEEO 1999, J65WRYEES 1999, J65WRYSIR commercial, rope start, 22.5 in shaft 2001, J65WRYSSC Commercial, Rope Start, 22.5 IN. shaft 2000 |
| J70 | J70ELCCA 1988, J70ELCDC 1986, J70ELCEM 1989, J70ELCUR 1987, J70ELEIE 1991, J70ELEND 1992, J70ELEOR 1995, J70ELERC 1994, J70ELERV 1994, J70ELESB 1990, J70ELETS 1993, J70JLEOS 1995, J70PLEEE 1999, J70PLSIS elec start, TNT, 20 in shaft 2001, J70PLSSD Elec Start, TNT, 20 IN. shaft 2000, J70TLCCA 1988, J70TLCDC 1986, J70TLCEM 1989, J70TLCUR 1987, J70TLECB 1998, J70TLEDA 1996, J70TLEIE 1991, J70TLEND 1992, J70TLEOR 1995, J70TLERC 1994, J70TLERV 1994, J70TLESB 1990, J70TLETS 1993, J70TLEUM 1997, J70TTLEIE 1991, J70TTLEND 1992, J70TTLEOR 1995, J70TTLERC 1994, J70TTLERV 1994, J70TTLETS 1993, J70VLSIS elec start, TNT, 20 in shaft 2001 |
| N65 | N65WMLM 1988 |
| RJ70 | RJ70PLSIS elec start, TNT, 20 in shaft 2001, RJ70PLSSD Elec Start, TNT, 20 IN. shaft 2000 |
| SE65 | SE65RSLD 1998, SE65RSLM 1996, SE65RSLZ2 1997, SE65RSYD 1998, SE65RSYM 1996, SE65RSYZ2 1997, SE65WMLD 1998, SE65WMLM 1996, SE65WMLZ2 1997, SE65WMYD 1998, SE65WMYM 1996, SE65WMYZ2 1997 |
| SJ60 | SJ60TLEDR 1996 |
| SJ65 | SJ65RSLD 1998, SJ65RSLM 1996, SJ65RSLZ2 1997, SJ65RSYD 1998, SJ65RSYM 1996, SJ65RSYZ2 1997, SJ65WMLD 1998, SJ65WMLM 1996, SJ65WMLZ2 1997, SJ65WMYD 1998, SJ65WMYM 1996, SJ65WMYZ2 1997 |
| SJ70 | SJ70TLEDA 1996 |
| T65 | T65WMLM 1988 |
| TE60 | TE60TLCEA 1989, TE60TLEIB 1991, TE60TLENE 1992, TE60TLESF 1989, TE60TLESF 1990, TE60TLESM 1990, TE60TLETD 1993 |
| TE70 | TE70TLCEM 1989, TE70TLESB 1990, TE70TLESF 1989, TE70TLESF 1990 |
| TJ60 | TJ60TLCEA 1989, TJ60TLEIB 1991, TJ60TLENE 1992, TJ60TLESF 1989, TJ60TLESF 1990, TJ60TLESM 1990, TJ60TLETD 1993 |
| TJ70 | TJ70TLCEM 1989, TJ70TLESB 1990, TJ70TLESF 1989, TJ70TLESF 1990 |
| VE60 | VE60ELEIB 1991, VE60ELENE 1992, VE60ELESM 1990, VE60ELETD 1993, VE60TLEIB 1991, VE60TLENE 1992, VE60TLESM 1990 |
| VE70 | VE70ELEIE 1991, VE70ELEND 1992, VE70ELESB 1990, VE70ELETS 1993, VE70TLEIE 1991, VE70TLEND 1992, VE70TLESB 1990, VE70TLETS 1993 |
| VJ60 | VJ60ELEIB 1991, VJ60ELENE 1992, VJ60ELESM 1990, VJ60ELETD 1993, VJ60TLEIB 1991, VJ60TLENE 1992, VJ60TLESM 1990 |
| VJ70 | VJ70ELEIE 1991, VJ70ELEND 1992, VJ70ELESB 1990, VJ70ELETS 1993, VJ70TLEIE 1991, VJ70TLEND 1992, VJ70TLESB 1990, VJ70TLETS 1993 |
Equivalent Manufacturer References
| Manufacturer/Brand | Reference/Part Number |
|---|---|
| OMC | 0394462, 394462 |
