For MerCruiser V6 and V8 engines from 4.3L to 6.2L in ALPHA, BRAVO and SKI configurations. It channels combustion gases towards the exhaust system, guaranteeing efficient cooling through seawater flow. Stainless steel with high resistance to saline corrosion.
14 Days Return
Simple and fast returns management so you can shop with complete confidence.
Free shipping
On orders over €99
Technical Advice
Unsure about the replacement part? Contact us via WhatsApp and we'll verify the exact part for you.
100% Secure Payment
Transactions are protected with SSL and HTTPS encryption. Shop with complete peace of mind.

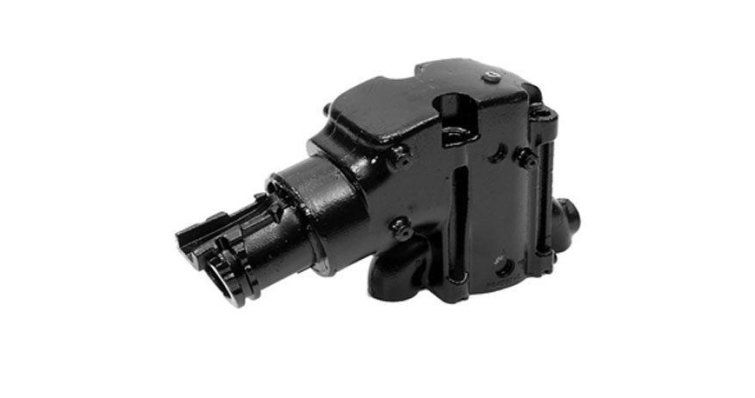

LOW EXHAUST ELBOW V6 V8 STAINLESS STEEL 864309T02
SED3095400
€603.79
Tax included
For MerCruiser V6 and V8 engines from 4.3L to 6.2L in ALPHA, BRAVO and SKI configurations. It channels combustion gases towards the exhaust system, guaranteeing efficient cooling through seawater flow. Stainless steel with high resistance to saline corrosion.
Description
The V6 V8 low exhaust elbow in stainless steel 864309T02 is an essential component of the gas evacuation system of MerCruiser engines. This piece channels the combustion gases from the manifold to the exhaust system, guaranteeing efficient evacuation and correct cooling of the engine through the flow of seawater.
Made of high quality stainless steel, this exhaust elbow resists marine corrosion and the extreme temperatures typical of petrol engine operation in saline environments. Its geometry is designed to minimize pressure losses and turbulence in the gas circuit.
Engine Compatibility
Mercury/MerCruiser
| Marca | Modelo | Rango de serie |
|---|---|---|
| MerCruiser | 4.3L CARB ALPHA/BRAVO | 0W300013 THRU 0W309999 / 0M615000 THRU 0W300012 |
| MerCruiser | 4.3L MPI ALPHA/BRAVO | 0M615000 THRU 0W309999 |
| MerCruiser | 5.0L CARB ALPHA/BRAVO | 0W300010 THRU 0W309999 / 0M600000 THRU 0W300009 |
| MerCruiser | 5.0L MPI ALPHA/BRAVO | 0M600000 THRU 0W059999 / 0W060000 THRU 0W309999 |
| MerCruiser | 5.7L CARB ALPHA/BRAVO | 0M600000 THRU 0W300754 / 0W300755 THRU 0W309999 |
| MerCruiser | 5.7L CARB SKI | 0W090900 THRU 0W689999 / 0W694844 & Up / 0M317000 THRU 0W090899 |
| MerCruiser | 5.7L MPI SKI | 1A090000 & Up |
| MerCruiser | 5.7L MPI TOW | 1G400000 THRU 1G499999 |
| MerCruiser | 5.7L MPI TOWSPORT WITH GEN III | 1A091881 & Up |
| MerCruiser | BLACK SCORPION MX 6.2L MPI | 0M391750 THRU 0W689999 / 0W690000 THRU 0W698432 |
| MerCruiser | MX 6.2L MPI BRAVO | 0M600000 THRU 0W059999 / 0W060000 THRU 0W309999 |
| MerCruiser | MX 6.2L MPI HORIZON BRAVO | 0W060000 THRU 0W309999 / 0M600000 THRU 0W059999 |
| MerCruiser | MX 6.2L MPI SKI | 0M317000 THRU 0W689999 |
| MerCruiser | 350 MAG MPI ALPHA/BRAVO | 0M600000 THRU 0W059999 / 0W060000 THRU 0W309999 |
| MerCruiser | 350 MAG MPI HORIZON ALPHA/BRAVO | 0W060000 THRU 0W309999 / 0M600000 THRU 0W059999 |
| MerCruiser | 350 MAG MPI SKI | 0W690000 THRU 1A089999 / 0M317000 THRU 0W689999 |
| MerCruiser | BLACK SCORPION 350 MAG MPI | 0W690000 THRU 0W698432 / 0M391600 THRU 0W689999 |
| MerCruiser | SCORPION 350 | 0W698433 & Up |
| MerCruiser | SCORPION 377 | 0W698433 & Up |
| MerCruiser | 383 STROKER SCORPION | 1G300000 & Up |
Equivalent manufacturer part numbers
| Manufacturer/Brand | Reference/Part Number |
|---|---|
| MerCruiser | SED3095400, 864309T01, 864309T02 ✓ (actual) |
