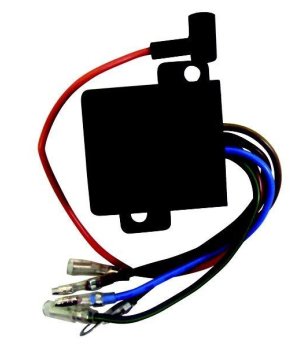

Black Box 115742

Function and Technical Context

The black box with reference 115742 is an electronic control module integrated into the ignition system of OMC outboard engines from Johnson and Evinrude brands. Its primary function is to manage and coordinate the electrical signals that regulate engine ignition, acting as a central processing unit between the crankshaft position sensors, the power module, and the ignition coils. A failure in this component can cause erratic starting, complete loss of ignition, unexpected engine shutdown during navigation, or irregular operation at different engine speeds, compromising the safety and operability of the vessel. Its correct presence and operation is essential to maintain ignition synchronization and the engine advance curve within the appropriate design parameters.

When to Replace This Part?

The most common symptoms of a defective electronic control module in outboard engines include repeated cold or hot start difficulties, intermittent ignition failure at certain engine speeds, sudden engine shutdown with no apparent mechanical cause, and error codes in compatible diagnostic systems. It is recommended to inspect this component during each seasonal maintenance or upon any of the described symptoms, especially if the engine has been exposed to high humidity, extreme vibrations, or short circuits in the electrical system. Preventively replacing the black box at the first sign of failure avoids being stranded without propulsion at sea and costly emergency engine repairs.

Compatible Johnson/Evinrude Engines

Equivalent Manufacturer References
