Float pin for Mercury 6C, 8C and 40C engines, and Yamaha 90A and E60H. Ensures the positioning of the floating buoy in the emergency system in case of overturning or immersion.
14 Days Return
Simple and fast returns management so you can shop with complete confidence.
Free shipping
On orders over €99
Technical Advice
Unsure about the replacement part? Contact us via WhatsApp and we'll verify the exact part for you.
100% Secure Payment
Transactions are protected with SSL and HTTPS encryption. Shop with complete peace of mind.

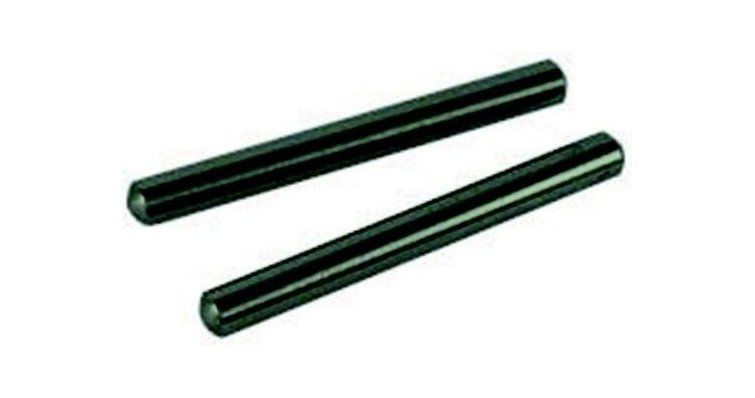

BUOY PIN 17-97730M REC688-14548-00
REC688-14548-00
€2.99
Tax included
Float pin for Mercury 6C, 8C and 40C engines, and Yamaha 90A and E60H. Ensures the positioning of the floating buoy in the emergency system in case of overturning or immersion.
Description
Function and technical context
The buoy pin is a structural component of the flotation system built into small displacement Mercury engines. Its mission is to ensure the stable and safe positioning of the floating buoy, which acts as a passive protection mechanism in case of overturning or accidental immersion of the propeller in water. This pin supports dynamic loads generated by the movement of the engine during navigation, as well as stresses derived from sudden maneuvers, changes of direction and reversing. A deterioration or breakage of this component compromises the functionality of the floating safety system, preventing the engine from maintaining its emergency position and putting at risk the ability to respond to critical situations in the water.
When to replace this part?
Indicators of wear or failure include visible deformation of the pin, advanced corrosion from exposure to the marine environment, uncontrolled displacement or abnormal play of the buoy, and failure to properly assemble the flotation assembly. It is recommended that the integrity of this pin be inspected at the beginning of each boating season, with special emphasis on saltwater vessels where corrosion accelerates metal deterioration. Preventive replacement before damage is detected avoids critical failures in navigation and ensures that the flotation system responds appropriately in case of emergency need.
Compatible Mercury and Yamaha engines
Compatible Mercury Mariner Engines
| Marca | Modelo | Rango de serie |
|---|---|---|
| Mercury Mariner | 6C HP | 6H8-000317 THRU 010381 / 6H8-010382 THRU 0B367529 / 6H8-300171 THRU 306502 / 6H8-306503 THRU 0B367529 |
| Mercury Mariner | 6D HP | 6H6-001302 THRU 0B367529 / 6H6-300406 THRU 0B367529 |
| Mercury Mariner | 8C HP | 6G1-027238 THRU 0B367529 / 6G1-316712 THRU 0B367529 / 6G1-7008786 THRU 0B367529 |
| Mercury Mariner | 40 (TWIN CARB) (W/OIL INJECTION) | 6E9-015001 THRU 09785866 / 6E9-150001 THRU 09785866 / 6E9-350001 THRU 09785866 / 6E9-450001 THRU 09785866 |
| Mercury Mariner | 40C (TWIN CARB) | 6E9-000106 THRU 6E9-007665 (M) / 6E9-100101 THRU 6E9-105013 (E) / 6E9-300126 THRU 6E9-309343 (ML) / 6E9-400231 THRU 6E9-423162 (EL) |
| Mercury Mariner | 40C (TWIN CARB) (W/AUTO-BLEND) | 6E9-007666 THRU 6E9-015000 / 6E9-105014 THRU 6E9-150000 / 6E9-309344 THRU 350000 / 6E9-423163 THRU 450000 / 6E9-500101 THRU 00503940 |
Motores Yamaha Compatibles▾
| Modelo | Años |
|---|---|
| 90A | 1984 – 1991 |
| E60H | 1997 – 2019 |
| E60H Enduro | 1996 – 2016 |
| E60H Enduro, Enduro | 2016 |
Equivalent manufacturer part numbers
| Manufacturer/Brand | Reference/Part Number |
|---|---|
| Mercury/MerCruiser | 00, 17-97730M, 97730M |
| Yamaha | 688-14548-00, 688-14548-00-00, 6881454800, 688145480000 |
Product Details
REC688-14548-00
