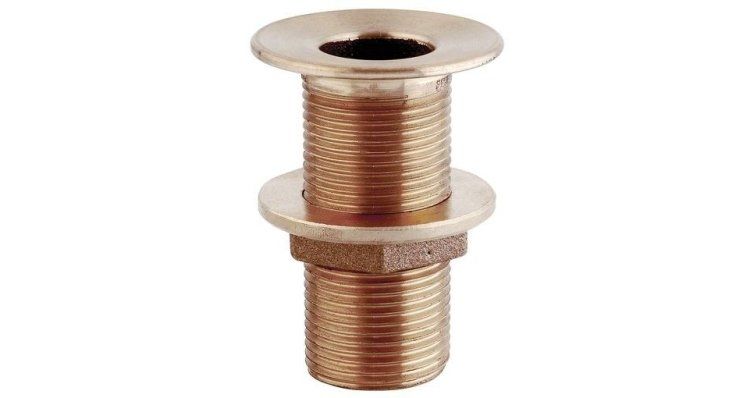

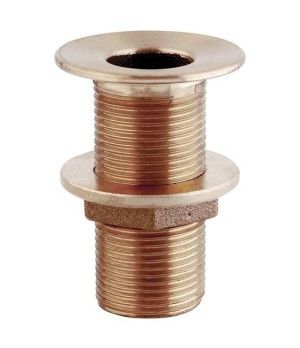

Thru Hull Scupper Naval Bronze 3" (Short v.2)

Function and technical context

The naval bronze thru-hull is a structural sealing accessory that passes through the hull of the boat to allow the controlled passage of water - whether inlet for the engine cooling, bilge or drainage systems - or for the evacuation of liquids to the outside. It works in the hydraulic water management system on board, functioning as a connection point between the interior of the boat and the marine environment. With a nominal measurement of 3" and a length of 15.85 cm, this short version (v.2) is designed for installations where the thickness of the hull or internal space restrictions require a smaller model. Its manufacture in naval bronze guarantees high resistance to galvanic corrosion in saltwater, freshwater and mixed environments, being a common technical choice in quality naval carpentry. A thru-hull in poor condition or with leaks directly compromises the safety of the boat, potentially causing uncontrolled entry of water with risk of flooding bilges or machinery spaces.

When to replace this part?

The most common symptoms that indicate the need to check or replace a thru-hull are: presence of moisture, dripping or rust stains around the body of the fitting, difficulty in maneuvering the associated shut-off valve (bottom cock), visible corrosion or pitting on the brass surface, and water oozing into the bilge without apparent cause. It is recommended to visually inspect all thru-hulls at each seasonal tune-up, both at launch and at grounding, taking advantage of the fact that the hull is accessible out of the water. Preventive replacement in the event of any sign of deterioration is the recommended professional practice: a leak during navigation or in port can lead to structural damage and repair costs much higher than the cost of the part.
