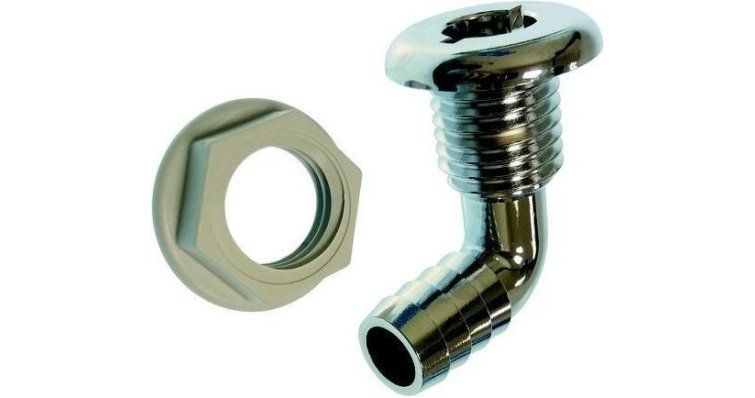

90° THROUGH-HULL FOR 19 MM HOSES.

Function and technical context

The 90º thru-hull for 19 mm hoses is a nautical plumbing accessory that allows a hose to be routed through the hull of the boat with a ninety-degree bend, guaranteeing a clean and watertight change of direction at the point of penetration of the hull. It is commonly used in gray water evacuation systems, bilges, seawater cooling systems or engine chamber emptying circuits, where the layout of the installation requires a right-angle branch without loss of airtightness. The correct sealing of this element is critical: any leak in the thru-hull can compromise the buoyancy of the boat and cause serious damage to the interior spaces or to the electrical equipment close to the hull.

When to replace this part?

The most common symptoms that indicate that a thru-hull needs to be replaced are the appearance of moisture or drips in the hull penetration area, visible deformations in the body of the part, cracks due to material fatigue or difficulty in keeping the 19 mm hose clamps tight. It is recommended to visually inspect all thru-hulls at each seasonal maintenance, paying special attention to the condition of the perimeter seal and the integrity of the angled body. Replacing the thru-hull preventively at the slightest sign of deterioration avoids emergency repairs in port or, in the worst case, uncontrolled entry of water during navigation.
