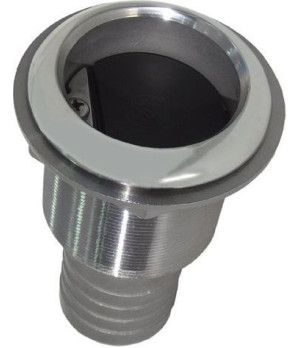

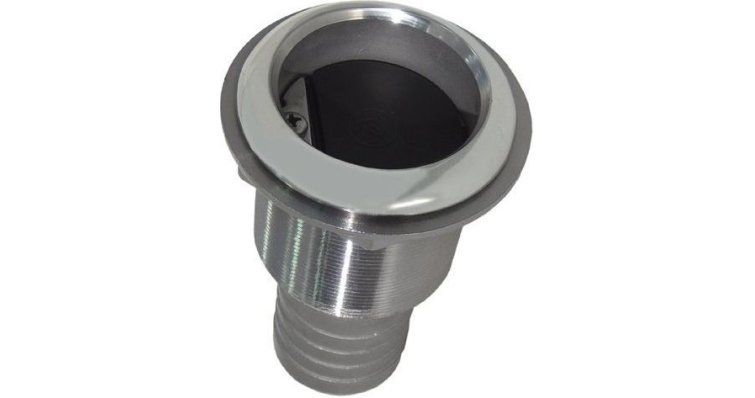

THRU-HULL WITH 1-1/2 VALVE

Function and technical context

The thru-hull with 1-1/2" valve is an essential accessory in the fluid management system of a boat: it allows the controlled passage of water or other fluids through the hull, incorporating a shut-off valve that allows the immediate closure of the circuit in case of maintenance, breakdown or unwanted water inlet. It is commonly used in engine cooling circuits, in bilge lines, in sea inlets or in gray and black water outlets. The integrated valve is the critical safety element of the installation, since a failure in this component—whether due to corrosion, obstruction or breakage of the body—can compromise the watertightness of the hull and cause water ingress with serious consequences for the buoyancy of the boat.

When to replace this part?

The most common symptoms that indicate that a valved thru-hull needs to be replaced are: difficulty opening or closing the shut-off valve (seizing due to galvanic corrosion or lime deposition), presence of moisture or dripping around the body of the thru-hull, or visible damage such as cracks, pits or deformation in the material. It is recommended to inspect this component during each seasonal maintenance, checking the free movement of the valve and the state of the sealing in the hull; Thru-hulls installed in saline environments have a more limited useful life and require more frequent inspection. Replacing the thru-hull preventively at the slightest sign of deterioration avoids emergency repairs and risky navigation situations.

Compatibility table
