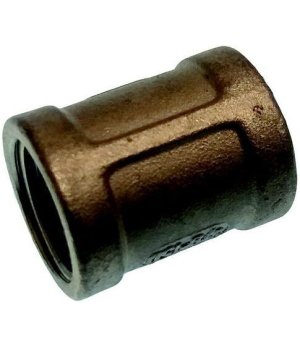

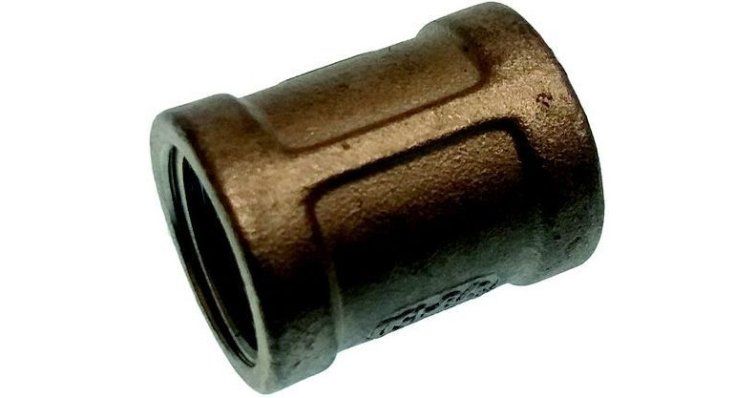

Double F/F Connection AISI 316 Stainless Steel 3/4"

Function and technical context

This double female-female connector (manchon F/F) of 3/4" in AISI 316 stainless steel acts as a joining element between two sections of pipe or hose in on-board fluid systems, allowing pipes to be joined without loss of tightness. It is commonly used in seawater cooling circuits, bilge systems, fuel lines and hydraulic lines of pleasure boats and work boats. The AISI 316 alloy, with greater resistance to chloride corrosion than conventional stainless steel, makes it the appropriate technical choice for saltwater environments where other materials would suffer from pitting or premature deterioration. A connector in poor condition can cause leaks in the pipeline, which in a cooling circuit results in engine overheating, and in a fuel or hydraulic line it can pose a serious safety risk on board.

When to replace this part?

Connectors of this type must be inspected during each seasonal maintenance, since galvanic corrosion, mechanical shocks and continuous pressure cycles can generate microcracks or deformations in the threading that compromise the tightness of the splice. The most obvious symptoms of a deteriorated connector are the appearance of moisture or dripping in the joint area, rust stains or whitish deposits around the thread, and abnormal resistance to tightening indicating damage to the thread. Replacing the stain preventively at the slightest sign of corrosion or leak avoids navigation interruptions and higher-cost secondary breakdowns in critical ship systems.

Compatibility table
