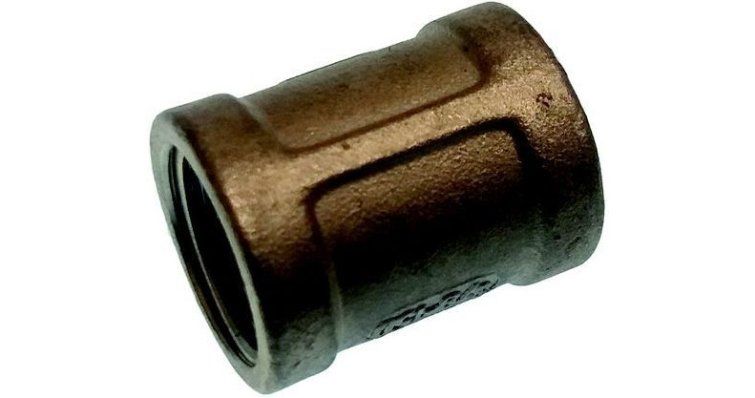

Double F/F Connection AISI 316 Stainless Steel 1 1/4"

Function and technical context

This double female-female connector (manchon F/F) in AISI 316 stainless steel is used to join two sections of pipe or hose in onboard systems that require a safe and watertight connection: seawater cooling circuits, fuel lines, bilge systems or hydraulic installations on boats. AISI 316 stainless steel—with its molybdenum content—guarantees superior resistance to marine corrosion, both in salt water environments and in high humidity atmospheres, making it the reference material in fittings for demanding nautical use. A connector in poor condition can cause leaks in the circuit where it works, with consequences ranging from the entry of unwanted water to the loss of pressure in the system, compromising the safety of the boat and its occupants. The nominal size of 1 1/4" makes it suitable for medium diameter pipes, common in cooling systems of medium and high power diesel and petrol engines.

When to replace this part?

Stainless steel pipe connectors should be inspected at the beginning of each sailing season: the most common symptoms of deterioration are the appearance of surface rust or pitting on the body of the fitting, deformation of the female threads that prevents correct tightening, or the presence of moisture or lime residue in the joint area that reveals a microleak. In installations with seawater, galvanic corrosion can accelerate wear if the connector is in direct contact with less noble metals, so it is advisable to check the condition of the fitting at each stranding or annual maintenance. Replacing this component preventively at the slightest sign of deterioration prevents more serious breakdowns at sea, where a leak in a critical circuit can become an emergency that is difficult to manage.
