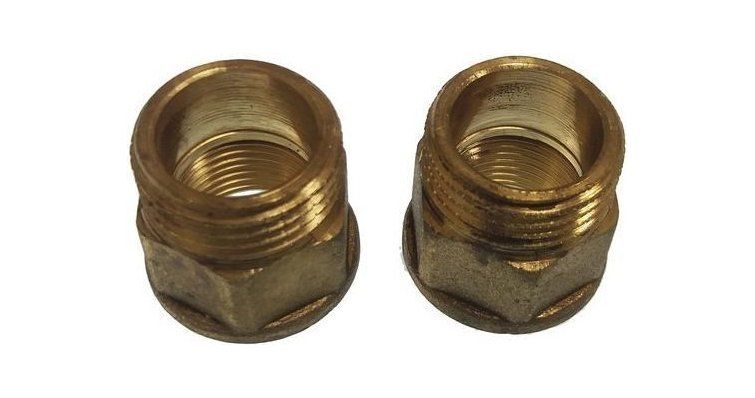

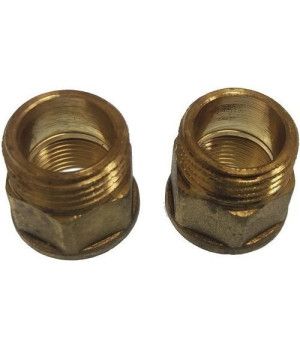

Reducing Bushing Brass 1/2" to 3/4"

Function and technical context

This brass reducer fitting allows you to connect pipes or hoses of different diameters within the hydraulic circuits of a boat, adapting a 3/4" inlet to a 1/2" outlet without the need for additional intermediate pieces. It is commonly used in seawater cooling systems, fuel circuits, bilge installations and onboard freshwater pressure lines, where diameter transitions between sections of rigid or flexible pipe are common. The brass alloy guarantees corrosion resistance in humid and saline marine environments, maintaining the tightness of the joint under continuous cycles of pressure and vibration. A fitting in poor condition can cause leaks in the circuit, loss of flow, entry of moisture into sensitive areas of the engine or emptying of the cooling system, with the consequent risk of overheating.

When to replace this part?

The most common symptoms that indicate that a reducing fitting needs to be replaced are the presence of moisture, vert or lime deposits around the union, continuous dripping even when the fitting is tightened, or visible corrosion on the surface of the brass that compromises the integrity of the thread. It is recommended that all circuit fittings be inspected at each seasonal maintenance, especially after prolonged periods of inactivity when condensation can accelerate internal metal deterioration. Preventively replacing a reducer fitting is a minimal cost intervention that prevents major breakdowns - such as emptying of the cooling circuit or a fuel leak - in navigation situations.
