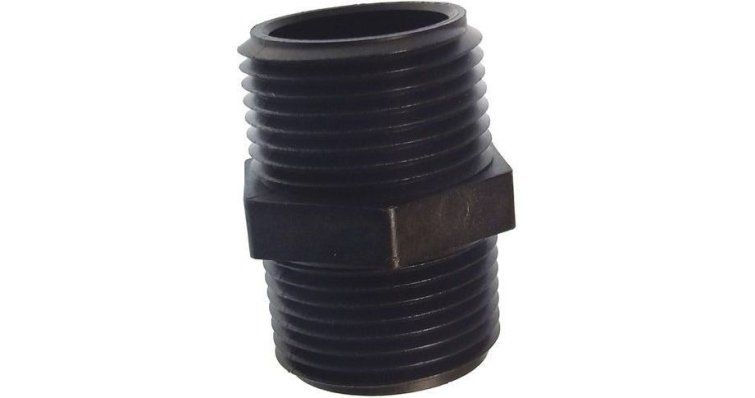

Reinforced Plastic Connection Nipple Plastic 3/4"

Function and technical context

This double male plug made of fiberglass reinforced plastic acts as a union fitting or connection nipple between two sections of hose or pipe in refrigeration, bilge, fuel or hydraulic circuit systems of boats. Its function is to create a tight and safe connection between 3/4" pipes, guaranteeing the passage of fluid without leaks or flow restrictions. The composite material of plastic reinforced with fiberglass makes it resistant to marine corrosion, hydrocarbons and the temperature variations common in the nautical environment, offering a much longer useful life than conventional plastic plugs in saline environments. A plug in poor condition can cause leaks in critical circuits, loss of cooling or inlet pressure. of water in sensitive compartments of the boat.

When to replace this part?

The most common symptoms that indicate that a male connection needs to be replaced are the appearance of moisture or stains at the ends that connect to the hose, visible micro-cracks in the body of the fitting or a softening of the material that compromises the fit of the clamps. It is recommended to visually inspect all the nipples and cores of the installation during each seasonal maintenance, especially after prolonged wintering, since temperature cycles accelerate the aging of the material. Preventively replacing this type of fitting has a minimal cost compared to a breakdown due to a leak while sailing or the secondary damage that it can cause to the engine or the bilge.
