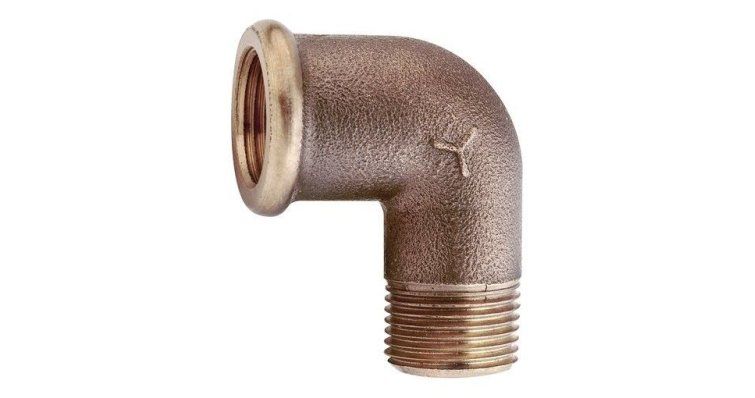

Male/Female Pipe Elbow 90º Naval Bronze 3"

Function and technical context

This 90º male/female elbow in 3" naval bronze is used in marine plumbing installations to redirect pipes at right angles, adapting the route of seawater, bilge, raw water cooling or on-board evacuation circuits. Naval bronze is the reference alloy in saltwater environments due to its high resistance to galvanic corrosion and erosion, essential qualities in any circuit in contact with the sea. The male/female configuration in a single accessory facilitates direct connection between sections of pipe without the need for additional fittings, reducing possible leak points in the boat's pipes. An elbow in poor condition can cause leaks in the bilge or cooling circuits, with the consequent risk of flooding of compartments or overheating of the engine.

When to replace this part?

The most common symptoms of deterioration in a naval bronze elbow are the appearance of verdigris or verdigris on the thread, visible micro-cracks in the body of the accessory, water leaks in the joint or difficulty in guaranteeing tight tightening in the thread. This type of accessory should be checked at each seasonal maintenance, especially if the boat operates in salt or brackish waters where the dezincification process can weaken the material over time. Preventively replacing an elbow with signs of corrosion or worn thread prevents unexpected breakages during navigation, breakdowns in the cooling system and costly repairs at the dock.

Compatibility table
