Female/Female Pipe Elbow 90º Naval Bronze 3"

Function and technical context

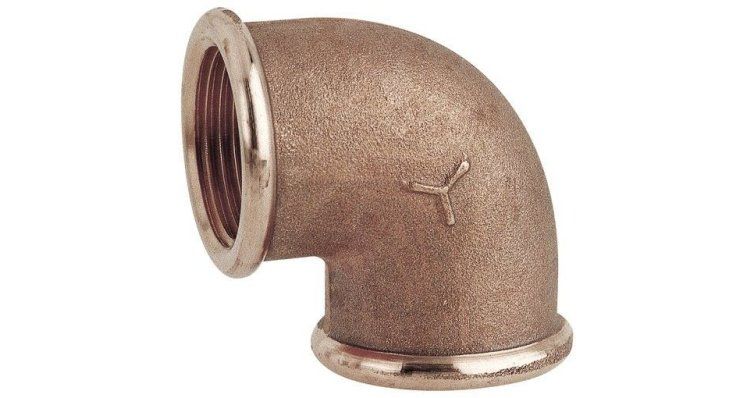

This 90º female/female naval bronze elbow is a marine plumbing accessory designed to change the direction of pipe routing in onboard installations, allowing ninety degree turns to be made with threaded connections at both ends. It is commonly used in seawater cooling systems, wet exhaust circuits, bilge systems, hull intakes and drinking or sanitary water pipes of pleasure boats and work boats. Naval bronze is the reference material in marine applications due to its high resistance to corrosion in saline environments and its mechanical robustness, guaranteeing the long-term tightness of the joint in conditions of continuous vibration typical of propulsion. An elbow in poor condition can cause leaks in the cooling circuit, uncontrolled water entry or loss of pressure in the system, with the serious consequences that this implies for the safety and operation of the engine and the boat.

When to replace this part?

The most common symptoms that indicate the need to replace a bronze elbow in a marine installation are the appearance of humidity or dripping in the area of the threaded joint, the visible formation of verdigris or galvanic corrosion on the surface of the fitting, and the presence of unexplained pressure losses in the circuit. It is recommended that all bronze fittings in the system be visually inspected during seasonal maintenance—at least annually—paying special attention to threads and tightening areas where wear is concentrated. Preventively replacing an elbow with signs of corrosion or microcracks prevents major breakdowns, such as partial flooding of the engine compartment or overheating due to interruption of the cooling flow.

Compatibility table
