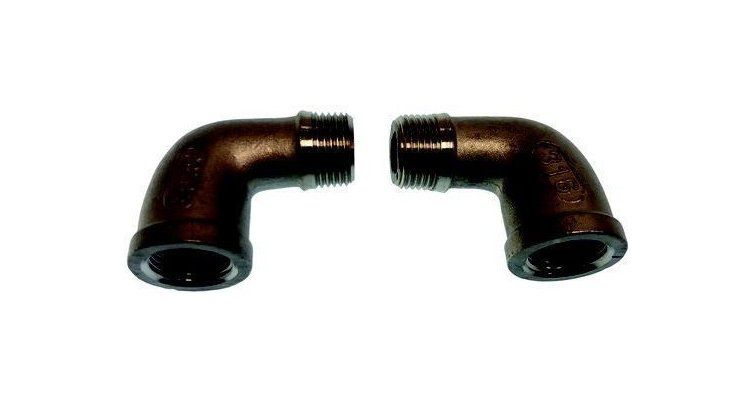

Male/Female Pipe Elbow 90º AISI 316 Stainless Steel 1/2"

Function and technical context

This 90º male/female elbow in AISI 316 stainless steel is used in on-board piping installations to change the direction of the fluid at a right angle, allowing the layout of the cooling, bilge, fuel or seawater circuits to be adapted to the geometry of the engine compartment. The male connection on one end and female on the other facilitates direct splicing between sections of 1/2" threaded pipe, eliminating the need for additional adapters and simplifying assembly in confined spaces. AISI 316 stainless steel—known in nautical industry as “marine grade” for its greater resistance to chloride corrosion compared to AISI 304—guarantees superior durability in environments of salt water, steam and continuous humidity typical of the machinery compartment. If the elbow fails due to corrosion, fatigue or a poor joint, a leak may occur that affects the cooling circuit, the bilge system or the seawater conduction, with the consequent risk of engine overheating or uncontrolled entry of water into the bilge.

When to replace this part?

The most common symptoms that indicate that a stainless steel threaded elbow needs to be replaced are the appearance of moisture or drops at the joint, rust stains or galvanic corrosion in the threaded area, and pressure losses detected during the circuit inspection. Although AISI 316 offers outstanding strength, it is advisable to visually inspect all pipe fittings at each seasonal maintenance, paying special attention to threads exposed to repeated thermal cycling or direct contact with seawater. Preventively replacing an elbow in poor condition is a low-cost intervention that prevents major breakdowns—such as emptying of a critical circuit or partial flooding of the engine compartment—in navigation situations far from the port.

Compatibility table
