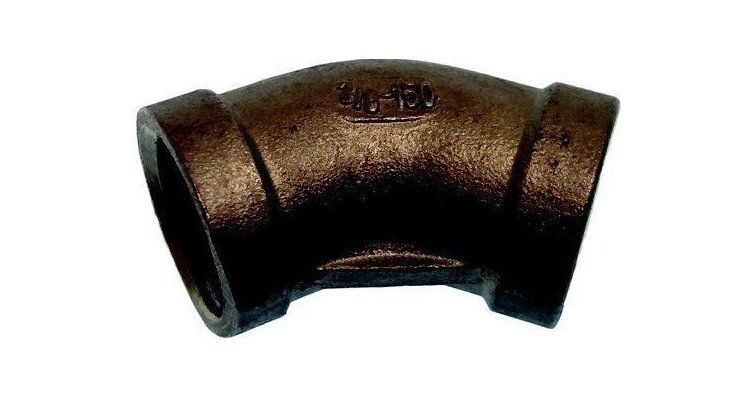

Female/Female Pipe Elbow 45º AISI 316 Stainless Steel 1"

Function and technical context

This 45º female/female elbow in AISI 316 stainless steel is used in shipboard piping installations to change the direction of the fluid with a gentle angle, reducing turbulence and pressure losses compared to a 90º elbow. Its application covers seawater cooling systems, wet exhaust circuits, nautical sanitary installations and hydraulic pipes in recreational and work boats. AISI 316 stainless steel, with its high molybdenum content, offers much higher resistance to marine corrosion than conventional 304 stainless steel, being the professional choice for environments permanently exposed to salt water and saline environments. A pipe fitting in poor condition can cause leaks in the circuit, loss of pressure, unwanted water ingress or overheating of the engine if the elbow is part of the cooling circuit. The female thread on both ends allows direct connection to 1-inch male pipes or fittings, making it easy to integrate into existing installations without the need for additional adapters.

When to replace this part?

The most common symptoms that indicate that a pipe elbow needs to be replaced are: appearance of rust stains or superficial pits on the thread or body, visible microcracks upon inspection, persistent leaks even when the connection is retightened, and galvanic corrosion in the area where it joins with other metals. In marine installations, it is recommended to inspect all stainless steel threaded accessories at the beginning of each navigation season, paying special attention to the joints in bilges, seacocks and cooling circuits. Preventively replacing a damaged elbow before commissioning prevents major breakdowns and costly unscheduled shutdowns at sea.
