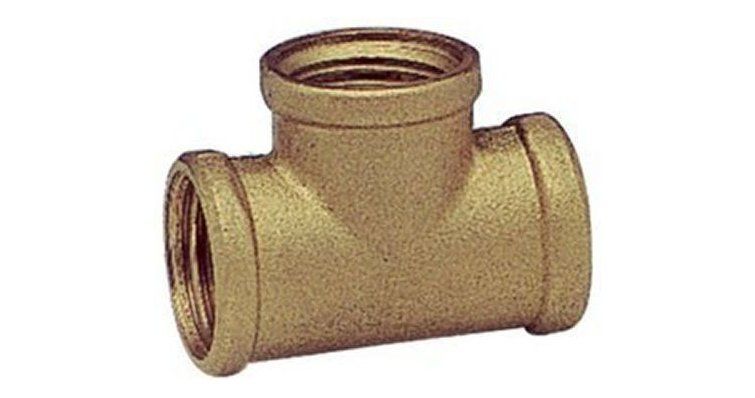

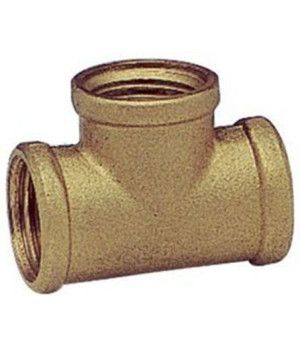

F/F/F Pipe Tee Brass 3"

Function and technical context

This brass T-branch with female thread in its three mouths allows branching or dividing pipe lines in hydraulic installations on board, including seawater cooling circuits, bilge systems, auxiliary fuel lines or sanitary pipes in pleasure boats and work boats. Brass, an alloy of copper and zinc, offers excellent corrosion resistance in humid and saline environments, making it the common choice for permanent connections in bilges, engine rooms and fluid distribution panels. The 3-inch gauge is intended for main sections with high flow, where the tightness of the seal in each branch is critical to avoid leaks that could compromise the integrity of the system or flood compartments. As it is a structural part within the circuit, any microcrack or deformation of the thread can result in pressure losses, unwanted water entry or interruption of supply to the downstream component.

When to replace this part?

The most common symptoms that indicate that a brass tee needs to be replaced are: persistent moisture or visible dripping in the threaded joint even after tightening or resealing with PTFE tape, noticeable galvanic corrosion on the surface of the fitting (pitting, vert or reddish discoloration), and deformation or runoff of the threads that prevents correct tightening. It is recommended that all pipe fittings be visually inspected during each seasonal maintenance—at least once a year—paying special attention to connections located in areas that are difficult to access or exposed to constant engine vibrations. Preventively replacing a T in poor condition before launching the boat avoids navigation breakdowns that, on the high seas, can become emergencies that are difficult to solve.

Compatibility table
