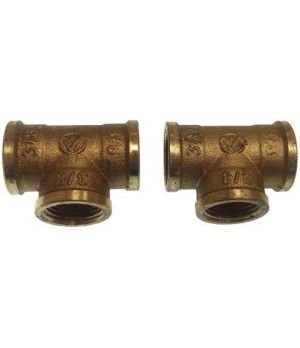

F/F/F Pipe Tee Brass 3/8"

Function and technical context

This brass tee fitting with three female inlets is a marine plumbing fitting designed to split or pool flows in 3/8" pipe installations aboard boats. It is commonly used in seawater cooling systems, fuel circuits, bilge lines, bilge systems or hydraulic installations where three branches need to be diverted or converged at a single point. Brass is the material of choice for these joints in marine environments due to its excellent resistance to corrosion in contact with fresh water, seawater and fuels, as well as its mechanical robustness against vibrations and pressure changes typical of navigation. A failure in this part—whether due to cracking, leakage, or damaged thread—can cause loss of tightness in the circuit, with consequent water ingress, pressure drops, or contamination of the affected system.

When to replace this part?

The most common symptoms that indicate the need to replace a brass T connection are the appearance of greenish stains or whitish deposits due to galvanic corrosion around the threads, visible water or fuel leaks at the joints, and difficulty in tightening or loosening the fittings due to deterioration of the 3/8" BSP thread profile. It is recommended to inspect these connections at each seasonal maintenance, checking the visual condition of the brass and the integrity of the seal. Preventively replacing a deteriorated T connection is a Minimum cost intervention that avoids major breakdowns in the circuit and possible risk situations during navigation.
