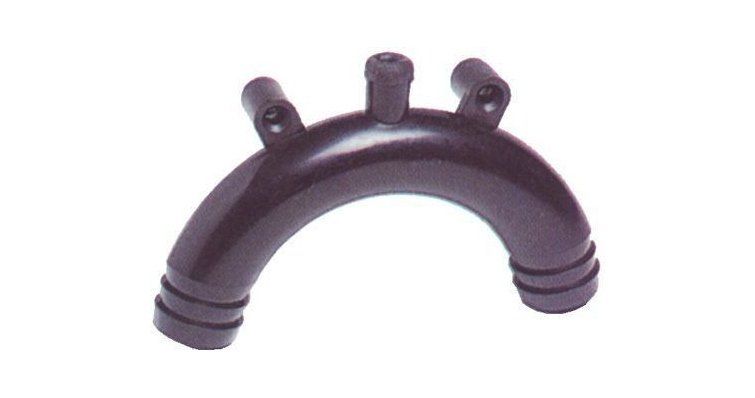

Vented Loop Plastic 19 mm 3/4"

Function and technical context

The anti-siphon valve, also known as a vented loop or siphon in nautical environments, is an essential safety component in marine toilet systems and pump installations located below the waterline. Its mission is to prevent the gravitational return of seawater towards the interior of the hull: when the pump stops, the valve opens allowing air to enter the circuit, breaking the siphon effect that could flood the engine compartment or the on-board toilet. Made of high-strength nylon in black, this 19 mm (3/4") unit is suitable for standard diameter hoses in bilge installations, headroom and even auxiliary cooling circuits mounted under the water line. Without this device, a pump failure or a simple manual valve closure can become a silent leak with serious consequences for the buoyancy of the boat.

When to replace this part?

The most common symptoms of failure in an anti-siphon valve are: persistent humidity or dripping at the point where the valve is mounted (indicates that the internal membrane no longer closes tightly), water entering the circuit when the pump is stopped, and continuous nauseating odors in the case of toilet systems (the valve does not vent properly). It is recommended to visually inspect the valve during each seasonal maintenance and replace the inner membrane - or the entire valve - every two seasons or if there is any sign of rigidity, deformation or lime deposits that prevent its correct operation. Replacing it preventively is a low-cost measure that avoids serious flooding situations while navigating.
