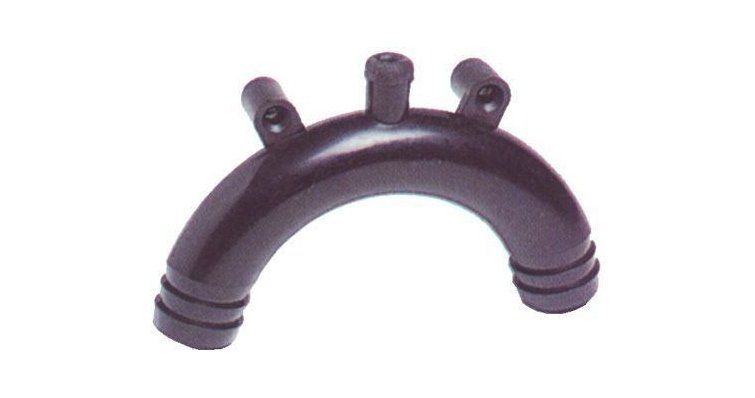

Vented Loop Plastic 38 mm 1 1/2"

Function and technical context

The anti-siphon valve, also known as a vented loop or siphon in nautical environments, is a critical safety component in marine toilet installations and pumping systems located below the waterline. Its main function is to prevent the reverse siphon effect that could cause the uncontrolled entry of sea water into the interior of the hull, either through the toilet circuit or the suction line of a pump. Made of high-resistance nylon in black, this 38 mm (1 1/2") valve incorporates a calibrated opening that vents the circuit, cutting off unwanted flow the moment pumping stops. Its correct installation is mandatory on any boat that has water intakes below the waterline, making it the first line of defense against accidental flooding caused by the marine plumbing system itself.

When to replace this part?

The most common symptoms of a deteriorated anti-siphon valve are the presence of constant humidity or dripping around the valve body, the persistent smell of sewage or bilge inside the boat, and the progressive entry of water into the circuit when the system is at rest. The internal membrane or valve seat can become clogged with lime, organic residues or become deformed due to prolonged exposure to cleaning chemicals and UV rays, so it is recommended to check its operation during each seasonal maintenance and replace it if there is any sign of rigidity, cracks in the plastic body or passage of water in the closed position. Replacing it preventively is a low-cost measure that can prevent serious flooding during navigation.

Compatibility
