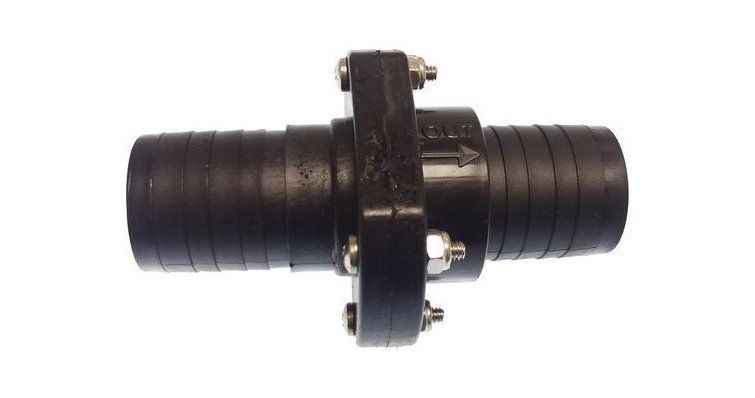

Polypropylene Non-Return Valve Plastic 38 mm 1 1/2"

Function and technical context

This polypropylene (PP) non-return valve is part of the seawater cooling system or the emptying and bilge circuits in recreational and work boats. Its essential mission is to allow the passage of the fluid in a single direction, preventing the return of water towards the motor, the pump or the suction hoses when the system stops. The built-in rubber flap acts as a sealing element: it opens under flow pressure and closes hermetically against any countercurrent. The all-polypropylene construction makes it especially suitable for saltwater environments, as this thermoplastic material is resistant to marine corrosion, chemicals, and fatigue from continuous thermal cycling, far exceeding the limitations of conventional metal valves in nautical applications. Its diameter of 38 mm (1½") makes it compatible with the most common hoses and fittings in cooling installations, wet exhaust and drainage systems for cross-country motorists.

When to replace this part?

The most common symptoms of a damaged non-return valve are: return of water to the pump or exhaust manifold when the engine is stopped, slow flooding of the wet exhaust manifold at rest, loss of prime in the seawater pump and, in advanced cases, water entering the engine through the cooling circuit when the boat is at anchor. The rubber flap can harden, crack or deform due to the combined action of heat, ozone and salt residue, losing its sealing capacity. It is recommended to visually inspect the valve during each seasonal maintenance and replace it preventively if there is any sign of rigidity, deformation or lime deposit on the flap; Replacing it before it fails prevents serious breakdowns at sea that can render the engine unusable due to hydrolock or overheating.

Compatibility table
