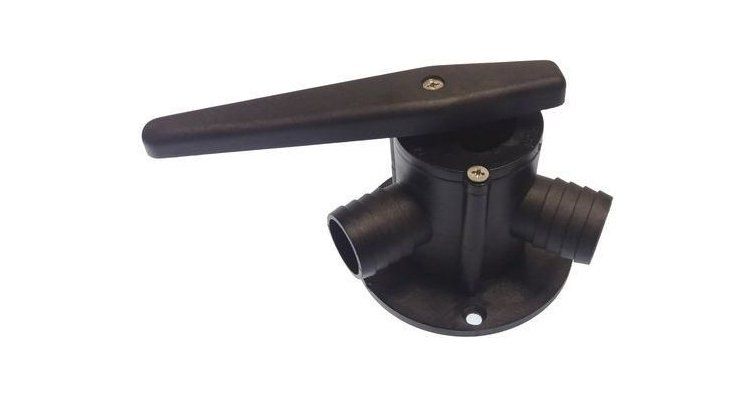

3-Way Ball Valve Plastic 25 mm 1"

Function and technical context

The three-way ball valves in high-resistance nylon allow you to divert, combine or interrupt the flow of fluids in nautical installations by means of a simple 90° turn, without the need for tools. They are used in drainage systems, marine toilet circuits, fresh and salt water tanks, and any installation where it is necessary to redirect the flow between two outlets or inlets from a single connection. The Y geometry of this model facilitates a balanced flow distribution, minimizing pressure losses and avoiding excessive turbulence in the pipe. Incorrect operation or a blocked valve can prevent the emptying of bilges in an emergency situation, block the filling or emptying of tanks or disable the marine toilet, with the consequences for safety and hygiene that this implies on board. The technical nylon body offers excellent corrosion resistance in both freshwater and seawater, making it particularly suitable for the marine environment.

When to replace this part?

The most common symptoms of deterioration in a nautical ball valve are leaks through the body or the actuation lever, difficulty in turning the control due to deformation of the inner seat or the accumulation of scale and saline deposits, and loss of tightness that allows the passage of fluid even with the valve closed. It is recommended that ball valves be visually inspected at each seasonal maintenance, checking for smooth operation and the absence of cracks in the plastic body, especially after periods of prolonged inactivity when the internal mechanism may become stuck. Replacing a valve preventively before it fails completely avoids compromising situations in navigation, where a breakdown in the bilge or sewage system can become a serious safety problem.
