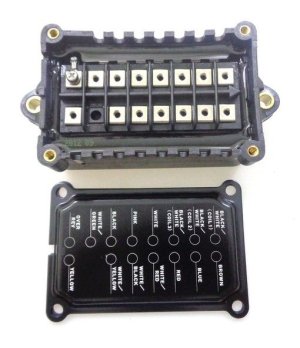

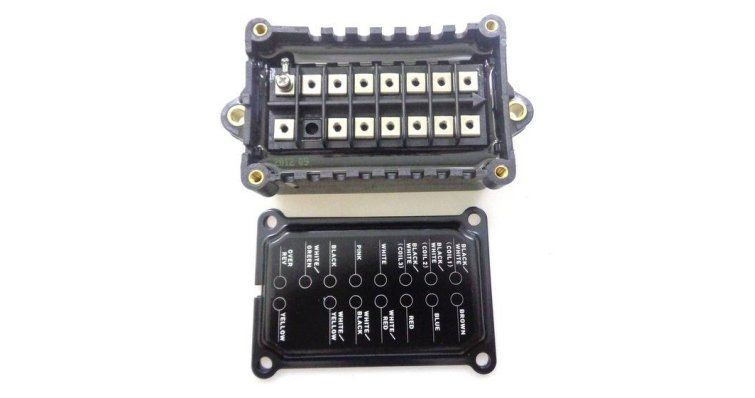

YAMAHA BLACK BOX 688-85540-16

Function and technical context

The Yamaha 688-85540-16 black box is a critical component of the outboard motor's electronic management and control system. This module integrates the ignition, fuel regulation and monitoring of operational parameters functions, ensuring optimal operation of the propeller in all navigation conditions. Its failure or degradation can cause loss of power, erratic engine behavior, unexpected shutdowns or inability to start, compromising the safety of the boat on the water.

When to replace this part?

Symptoms of failure in this module include intermittent misfires, unstable revs, error warnings on the control panel or engine cuts while cruising. Although there is no fixed predetermined maintenance interval, it is recommended to inspect the condition of this component at each seasonal inspection, especially if the boat has been exposed to humidity, extreme thermal variations or saline environment. Preventively replacing this module avoids being left without propulsion in emergency situations and guarantees the reliability of the boat.

Equivalent manufacturer part numbers
