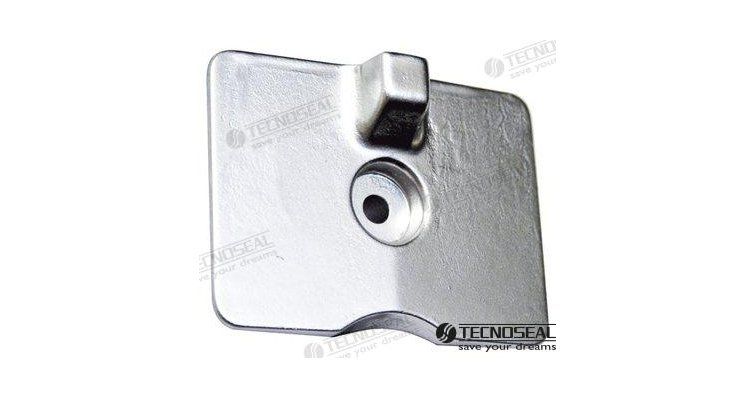

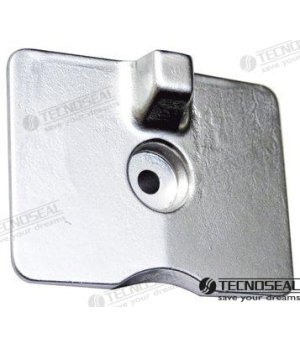

YAMAHA ALUMINUM ANODE

Function and technical context

The sacrificial anode is an essential component in the cathodic protection of Yamaha marine engines, whose main function is to oxidize preferentially before the noble metal parts of the propellant. Strategically installed in areas of the engine exposed to direct contact with salt water or fresh water, it acts as an electrochemical barrier that neutralizes the corrosive potential of the aquatic environment. In the cooling circuit, the anode slowly dissolves, transferring electrons that stop galvanic corrosion in the engine block, cylinder head and pipes, significantly extending the useful life of the equipment and avoiding irreversible structural degradation.

When to replace this part?

The aluminum anode should be thoroughly inspected at the end of each boating season; The presence of severe corrosion, deep pitting, or loss of more than 50% of volume indicates the immediate need for replacement. In salt waters, degradation is significantly faster than in inland fresh waters, so a technical inspection is recommended every 100 to 150 hours of operation, with special attention if the boat frequently navigates in coastal areas; Preventive replacement before prolonged offshore voyages is essential to avoid engine exposure to accelerated corrosion and catastrophic failure in compromised conditions.

Equivalent manufacturer part numbers
