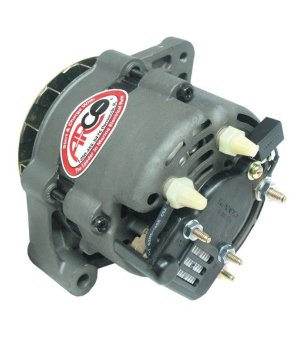

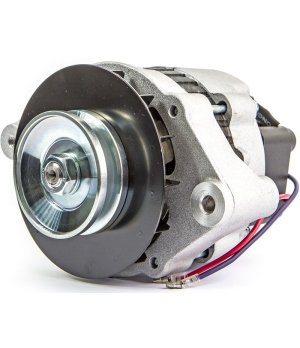

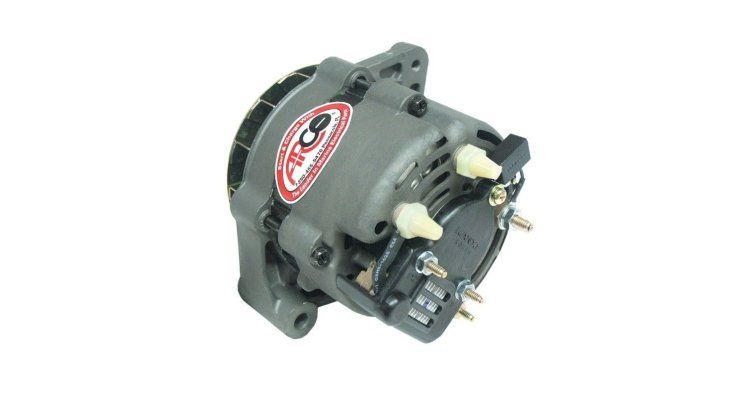

ALTERNATOR 817119A4 12V 55A

REC3860769
€313.39
Tax included
12V 55A generator with integrated voltage regulator for MerCruiser 2.5L to 8.2L and Volvo Penta 3.0L to 7.4L engines. It keeps the battery charged and powers the electrical systems during navigation. Simple direct installation pulley.
Quantity
Formas de pago: tarjeta, Bizum, PayPal, transferencia bancaria y contrareembolso

Buy it now and receive it between Thursday 30 July and Friday 31 July with Correos Express

Description

The 817119A4 alternator is a 12V 55A electric generator designed specifically for marine petrol engine charging systems. This component converts the engine's mechanical energy into electrical energy, keeping the battery charged and powering the vessel's electrical systems during operation. It incorporates an internal voltage regulator that automatically stabilizes the output at 12 volts, ensuring safe and consistent charging.

Its single pulley configuration allows for direct installation onto existing mounts of compatible motors. Precision manufacturing ensures reliable performance in demanding marine conditions, both in recreational and professional boating applications.



Engine Compatibility

Compatible Volvo Engines

Series Models
986008986008
985964985964



Mercury/MerCruiser

MarcaModeloRango de serie
MerCruiser2.5L GM 153 I/L40B531854 THRU 0C856558
MerCruiser3.0L GM 181 I/L40L097000 THRU 0W301999 / 0L010042 THRU 0L096999 / 0C856559 THRU 0F353099 / 0B450801 THRU 0C856558
MerCruiser3.0LX GM 181 I/L40F604000 THRU 0K999999 / 0C856559 THRU 0F603999
MerCruiser4.3L (2 BBL.) GM 262 V-60B773243 THRU 0D714106
MerCruiser4.3L (GEN II) (2 BBL.) GM 262 V-60F000878 THRU 0F601126 / 0F601127 THRU 0F802999 / 0D714107 THRU 0F000877
MerCruiser4.3LX (4 BBL.) GM 262 V-60B775130 THRU 0D714369
MerCruiser4.3LX (GEN II) (4 BBL.) GM 262 V-60F001220 THRU 0F601126 / 0F601127 THRU 0F802999 / 0D714370 THRU 0F001219
MerCruiser5.0L (2 BBL.) GM 305 V-80B774445 THRU 0F600999
MerCruiser5.0L MIE (4 BBL.) GM 305 V-80B522506 THRU 0B788151
MerCruiser5.0LX (4 BBL.) GM 305 V-80B773740 THRU 0F600999
MerCruiser5.7L GM 350 V-80B525982 THRU 0F600999
MerCruiser5.7L (2 BBL.) GM 350 V-80F601000 THRU 0K001526
MerCruiser5.7L MIE GM 350 V-80B788197 THRU 0F024999
MerCruiser5.7L COMPETITION SKI GM 350 V-80F775200 THRU 0K040003 / 0B514627 THRU 0F775199
MerCruiser5.7L MIE GM 350 V-80F622151 THRU 0F746099 / 0F746100 THRU 0K040306 / 0F622100 THRU 0F622150 / 0F025000 THRU 0F622099
MerCruiser5.7LX (4 BBL) GM 350 V-80F601000 THRU 0K001526
MerCruiser7.4l MIE W/B/W GM 454 V-80B788366 THRU 0D715493
MerCruiser7.4L BRAVO GM 454 V-80B771113 THRU 0D603117
MerCruiser7.4L BRAVO (GEN. V) GM 454 V-80D603118 THRU 0F800699
MerCruiser7.4L BRAVO (GEN. VI) GM 454 V-80F800700 THRU 0K999999
MerCruiser7.4L MIE (LH) GEN. V GM 454 V-80D715494 THRU 0F820141
MerCruiser7.4L MIE W/HURTH GM 454 V-80C391564 THRU 0D715493
MerCruiser7.4L MIE (LH) GEN. VI GM 454 V-80F820142 THRU 0K999999
MerCruiser8.2L MIE GEN. V GM 502 V-80D857200 THRU 0F819619
MerCruiser8.2L MIE W/HURTH GM 502 V-80C878221 THRU 0D857199
MerCruiser120 GM 153 I/L46229718 THRU 0B531853
MerCruiser140 GM 181 I/L46229718 THRU 0B450800
MerCruiser175 (2 BBL.) GM 262 V-60B527955 THRU 0B773242
MerCruiser185 (2 BBL.) GM 262 V-60A331455 THRU 0B527954
MerCruiser200 (2 BBL.) GM 305 V-80B525982 THRU 0B774444 / 6218462 THRU 0B525981
MerCruiser205 (4 BBL.) GM 262 V-60A331455 THRU 0B527954 / 0B527955 THRU 0B775129
MerCruiser228 (4 BBL.) GM 305 V-86218462 THRU 0B525981
MerCruiser230 (4 BBL.) GM 305 V-80B525982 THRU 0B773739 / 6218462 THRU 0B525981
MerCruiser230 MIE (4 BBL.) GM 305 V-80B522506 THRU 0B788151 / 5907058 THRU 0B522505
MerCruiser260 (4 BBL.) GM 350 V-80B525982 THRU 0B773739 / 6218462 THRU 0B525981
MerCruiser260 MIE GM 350 V-80B522506 THRU 0B788196 / 5907058 THRU 0B522505
MerCruiser330 GM 454 V-86083145 THRU 0B816540
MerCruiser340 MIE W/B/W GM 454 V-85889914 THRU 0B788365
MerCruiser350 MAG. (SKI) GM 350 V-80D505450 THRU 0K040399
MerCruiser350 MAG. ALPHA (4 BBL.) GM 350 V-80F601000 THRU 0K001526 / 0B525982 THRU 0F600999 / 0A635178 THRU 0B525981
MerCruiser370 TRS GM 454 V-84179554 THRU 6721527
MerCruiser400 TRS GM 454 V-84179554 THRU 0B457644
MerCruiser420 GM 454 V-80A398941 THRU 0B622418
MerCruiser425 GM 454 V-80A398941 THRU 0D937011
MerCruiser425 (GEN. V) GM 454 V-80A398941 THRU 0D937011
MerCruiser440 TRS GM 454 V-84179554 THRU 0B485220
MerCruiser454 MAG. ALPHA GM 454 V-80A631894 THRU 0B785148
MerCruiser454 MAG. BRAVO GM 454 V-80B721206 THRU 0D805068
MerCruiser454 MAG. BRAVO (GEN. V) GM 454 V-80F305000 THRU 0F801699 / 0D805069 THRU 0F304999
MerCruiser454 MAG. BRAVO (GEN. VI) GM 454 V-80F801700 THRU 0K999999
MerCruiser460 TRS GM 482 V-84179554 THRU 6181046
MerCruiser500 BULLDOG GM 540 V-80C577254 THRU 0F745405
MerCruiser502 MAG. BRAVO (GEN. V) GM 502 V-80D824589 THRU 0F114528
MerCruiser600 SC GEN IV & V GM 502 V-80D456489 THRU 0F877642
MerCruiser898 (2 BBL.) GM 305 V-86218462 THRU 0B525981



Equivalent manufacturer part numbers

Manufacturer/BrandReference/Part Number
Mercury/MerCruiser3860769, 12449, 12449A1, 19685, 817119, 817119A1, 817119A4, (actual), 817119R01, 8M6007458, 8M6007494, 92497A3, 98555
Volvo3857298, 3860769
OMC0988247, 3850927, 3860769
Caterpillar8EM2003K, 8EM2004KB, 8EM2004KBS, 8EM2017K, 8MR2024F, 8MR2036K, 8MR2091KSS
